Product Detailed Parameters
- Description：AUTOMOTIVE DRIVER
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Motor Type - Stepper：Bipolar
- Motor Type - AC, DC：Brushed DC
- Function：Controller - Speed
- Output Configuration：Pre-Driver - Half Bridge (6)
- Interface：PWM, SPI
- Technology：NMOS
- Step Resolution：-
- Applications：-
- Current - Output：-
- Voltage - Supply：4.5V ~ 5.5V
- Voltage - Load：7V ~ 18V
- Operating Temperature：-40°C ~ 125°C (TA)
- Mounting Type：Surface Mount

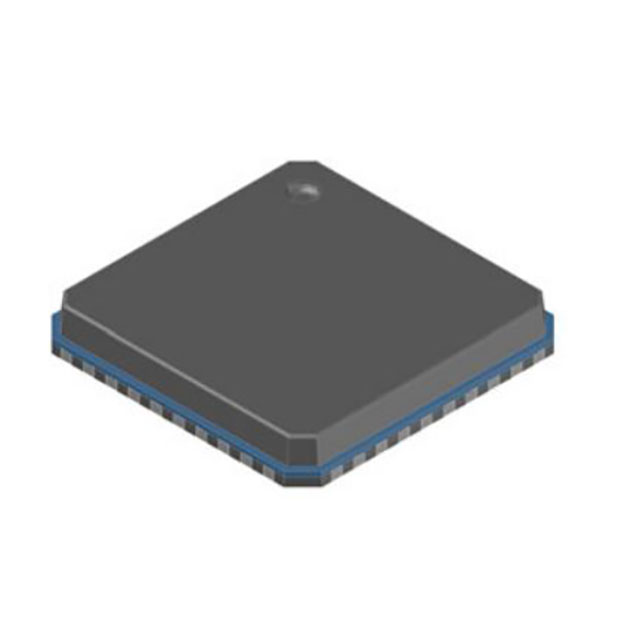

- Package / Case：40-VFQFN Exposed Pad
- Supplier Device Package：40-QFNW (6x6)
- Grade：Automotive
- Qualification：-
Download product information
FAQ
Is the NCV7546MWTXG an automotive-grade component?
Yes, it is AEC-Q100 qualified for automotive applications.
What type of gate driver configuration does this part use?
It utilizes a half-bridge configuration with two drivers.
