Product Detailed Parameters
- Description：IC LED DRVR LIN PWM 100MA 16SOIC
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)
- Type：Linear
- Topology：-
- Internal Switch(s)：No
- Number of Outputs：8
- Voltage - Supply (Min)：-
- Voltage - Supply (Max)：40V
- Voltage - Output：-
- Current - Output / Channel：100mA
- Frequency：-
- Dimming：PWM
- Applications：Lighting
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Surface Mount

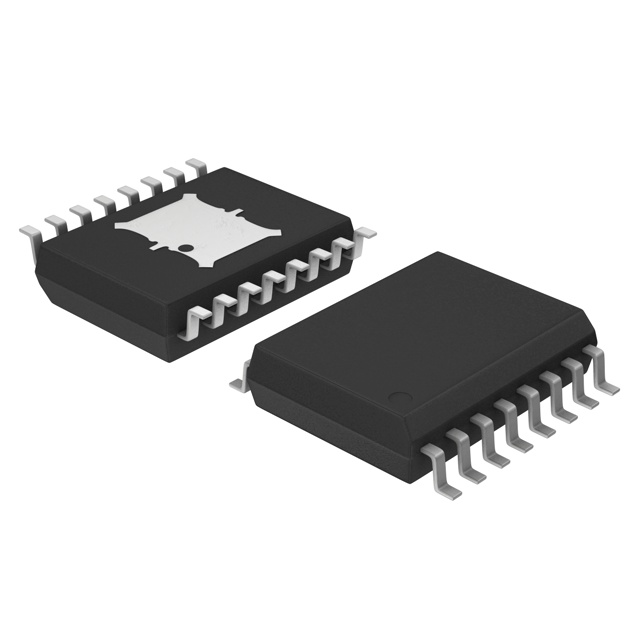

- Package / Case：16-SOIC (0.295", 7.50mm Width) Exposed Pad
- Supplier Device Package：16-SOIC
- Grade：Automotive
- Qualification：AEC-Q100
Download product information
Overview
The NCV7681APWR2G is an automotive-grade LED lighting driver IC featuring eight constant current outputs. It operates within a supply voltage range of 4.5 V to 16 V, with a maximum rating of 40 V. Each channel delivers up to 100 mA of output current. The device supports linear PWM dimming and utilizes a 16-SOIC package with exposed pad. It is AEC-Q100 qualified and functions across a junction temperature range of -40°C to +150°C.
Feature Summary
- Eight-channel constant current architecture for series or parallel LED configurations
- Integrated linear PWM dimming capability for brightness control
- Automotive qualification compliant with AEC-Q100 standards
- High thermal tolerance supporting operation up to 150°C junction temperature
Applications
- Automotive exterior lighting systems
- LED headlamp modules
- Tail lamp assemblies
- Interior ambient lighting circuits
Procurement Notes
Verify component authenticity through authorized onsemi channels due to end-of-life status. Confirm package integrity and moisture sensitivity level handling procedures prior to assembly. Review the latest product change notification for manufacturing site updates. Ensure design compatibility with existing PCB footprints and thermal management requirements.
Selection Notes
Select this component for designs requiring multiple synchronized LED channels in automotive environments. Evaluate thermal dissipation needs given the 100 mA per channel output in a SOIC-16WB package. Consider the 40 V absolute maximum rating when designing against load dump conditions. Verify that the linear PWM dimming interface matches the system controller specifications.
Part Context
This part belongs to the NCV7681 family of LED drivers designed for robust automotive applications. It provides a scalable solution for multi-channel lighting control. The device integrates protection features typical of onsemi's automotive power management portfolio. It serves as a specialized interface between low-voltage logic controllers and high-power LED loads.
Replacement Considerations
The manufacturer has declared this specific part number end-of-life. Engineers must identify alternative components from the same family or compatible successors. Verify pinout compatibility and electrical parameter equivalence before substitution.
