NCV8160AMX250TBG

$0.72

Description：IC REG LINEAR 2.5V 250MA 4-XDFN
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3b91f90574f3 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NCV8160AMX250TBG is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists onsemi. Its product description is IC REG LINEAR 2.5V 250MA 4-XDFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for NCV8160AMX250TBG

Description：IC REG LINEAR 2.5V 250MA 4-XDFN
Series：-
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：2.5V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.175V @ 250mA
Current - Output：250mA
Current - Quiescent (Iq)：23 µA
Current - Supply (Max)：-
PSRR：91dB ~ 48dB (100Hz ~ 100kHz)
Control Features：Enable
Protection Features：Over Current, Over Temperature
Operating Temperature：-40°C ~ 125°C (TA)
Mounting Type：Surface Mount

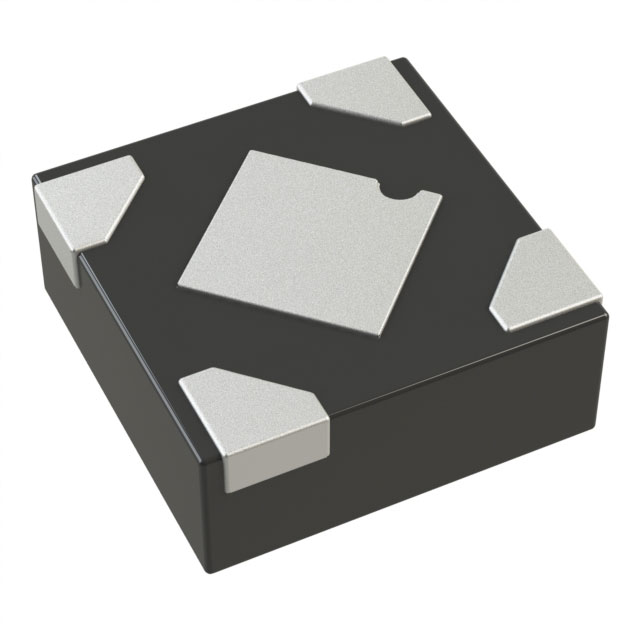

Package / Case：4-XDFN Exposed Pad
Supplier Device Package：4-XDFN (1x1)
Grade：Automotive
Qualification：AEC-Q100

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for NCV8160AMX250TBG

NCV8160AMX250TBG

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The NCV8160AMX250TBG is a fixed-output linear regulator providing 2.5 V at up to 250 mA. It operates within an input voltage range of 1.9 V to 5.5 V and features ultra-low noise (10 µVRMS) and high PSRR (98 dB). The device includes an enable pin, active discharge, and thermal shutdown. It is housed in an XDFN-4 package and meets AEC-Q100 Grade 1 automotive standards.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Ultra-low output noise suitable for RF and analog circuits
High power supply rejection ratio across frequencies
Integrated active discharge for rapid output voltage decay
Automotive-grade qualification with unique site control

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Advanced Driver Assistance Systems (ADAS)
Infotainment and instrument clusters
Telematics modules
General purpose automotive and industrial systems

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix 'MX' indicates the XDFN-4 package and '250' confirms the 2.5 V output. Confirm 'A' denotes Version A with active discharge functionality. Ensure the order quantity matches the tape and reel specifications provided by the manufacturer.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when low noise and high PSRR are critical for sensitive analog or RF loads. The 2.5 V fixed output eliminates external resistor networks. Verify that the required load current does not exceed 250 mA and that the input voltage remains within the specified operating range.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the NCV8160 series of low dropout regulators designed for automotive applications. The NCV prefix signifies compliance with automotive quality requirements and unique site control changes. It is part of onsemi's portfolio of power management solutions for vehicle electronics.
