NDD36PT6-2AAT

Memory IC Overview

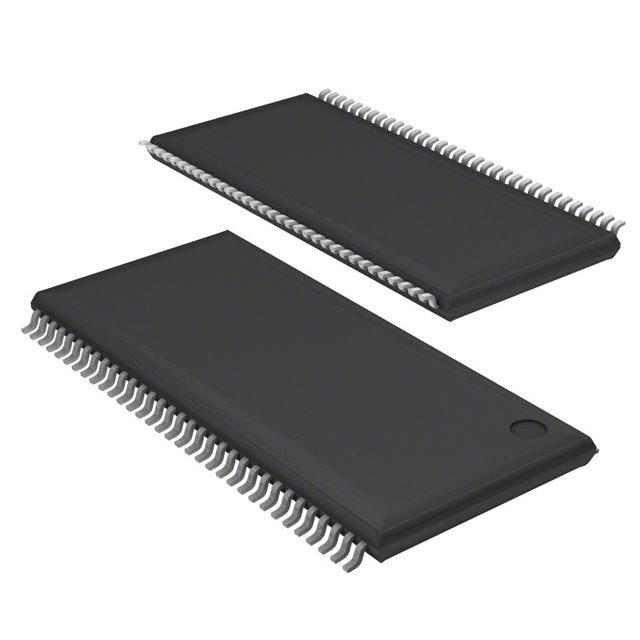

The NDD36PT6-2AAT is a DDR SDRAM memory IC manufactured by Insignis Technology Corporation. It features a storage capacity of 256 Mbits, internally organized as a quad 4M x 16 configuration. The device operates at a clock frequency of 200 MHz with a access time of 700 ps. It utilizes SSTL_2 interface standards and requires a supply voltage range of 2.3V to 2.7V. The component is housed in a 66-TSOP II package.

Memory IC Feature Summary

• Supports double data rate synchronous DRAM technology for high-speed data transfer
• Includes auto precharge and data mask functions for efficient operation
• Features built-in phase-lock loop for clock stability
• Capable of auto self-refresh modes to maintain data integrity

Memory IC Applications

• Embedded systems requiring compact memory solutions
• Consumer electronics devices utilizing DDR interfaces
• Industrial control units needing reliable volatile storage

Memory IC Procurement Notes

Verify the specific suffix 'AAT' against official datasheets to confirm pinout and electrical characteristics. Ensure compatibility with SSTL_2 signaling levels in the target design. Confirm package dimensions match the 66-TSOP II footprint requirements. Check for RoHS compliance status if environmental regulations apply to the final assembly process.

Memory IC Selection Notes

Select this component when a 256 Mbit DDR SDRAM with a 66-pin TSOP II package is required. Ensure the system voltage supports the 2.3V to 2.7V operating range. Verify that the host controller supports the SSTL_2 interface standard. Consider the 200 MHz speed grade for performance matching with the processor bus.

Memory IC Part Context

This part belongs to the NDD36 series of DDR SDRAMs from Insignis Technology Corporation. It shares the basic architecture with other variants in the family but differs in interface type and package. The TSOP II form factor allows for surface-mount installation on printed circuit boards with limited space constraints.

Memory IC Replacement Considerations

NDD36PT6-2AIT is a documented substitute with identical specifications and packaging.
