NDL16PFJ-9MET TR

Memory IC Overview

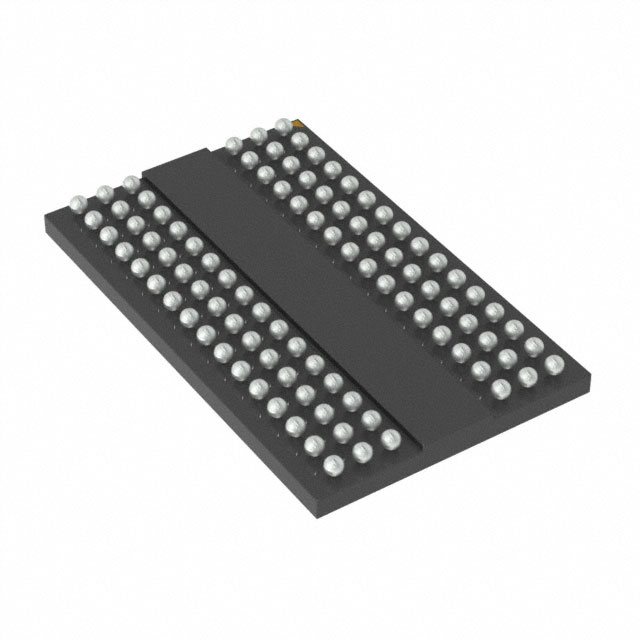

The NDL16PFJ-9MET TR is a DDR3L SDRAM memory IC manufactured by Insignis Technology Corporation. It features a storage capacity of 1Gb organized as 128M x 8, operating at a clock frequency of 800 MHz with a 20 ns access time. The device supports a supply voltage range of 1.35V to 1.45V and functions within a temperature range of -40°C to 95°C. It utilizes a 96-VFBGA package (9x10.6mm) for surface mount installation.

Memory IC Feature Summary

• DDR3L low-voltage technology for reduced power consumption
• Parallel interface architecture for high-speed data transfer
• Industrial-grade wide temperature operation capability

Memory IC Applications

• Embedded systems requiring compact memory solutions
• Industrial control equipment
• Consumer electronics devices

Memory IC Procurement Notes

Verify the specific suffix '9MET' against official manufacturer documentation to confirm pinout and electrical characteristics. Confirm RoHS compliance status and moisture sensitivity level requirements for your assembly process. Check current product lifecycle status as components may be discontinued or subject to last-time buy notices.

Memory IC Selection Notes

Select this component when a 1Gb density with 8-bit width is required in a small form factor. Ensure the system design supports DDR3L voltage levels and timing parameters. Compare package dimensions against PCB footprint constraints before finalizing the design.

Memory IC Part Context

This part belongs to the NDL16 series of DRAM products from Insignis Technology Corporation. The series includes various configurations such as 16-bit widths and different package types. The NDL16PFJ-9MET TR represents a specific 8-bit variant optimized for space-constrained applications.

Memory IC Replacement Considerations

Consult official substitution guides for compatible parts. Verify pin-to-pin compatibility and electrical parameter alignment before replacing.
