NDL28PFH-9MET TR

Memory IC Overview

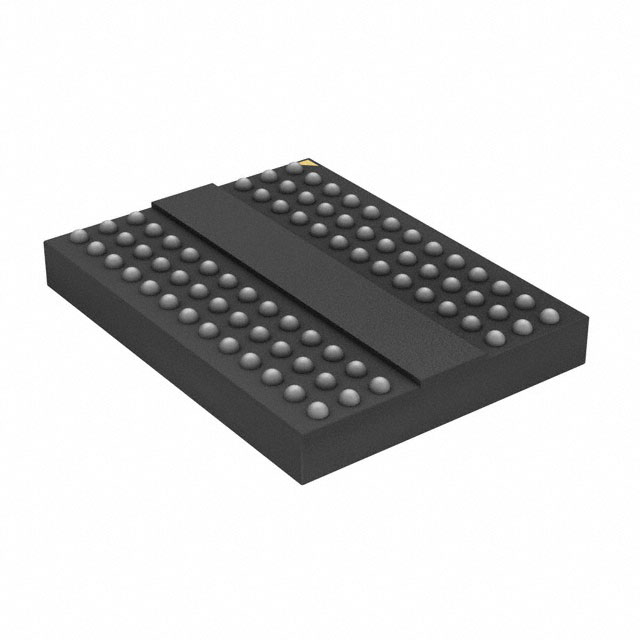

The NDL28PFH-9MET TR is a 2Gbit SDRAM component utilizing DDR3L technology, manufactured by Insignis Technology Corporation. It features a parallel interface with a maximum clock frequency of 933 MHz and an access time of 20 ns. The device operates within a supply voltage range of 1.283V to 1.45V and supports an operating temperature range of 0°C to 95°C (TC). It is housed in a 78-VFBGA (8x10.5) surface-mount package.

Memory IC Feature Summary

• DDR3L SDRAM technology for low-power operation
• Parallel interface supporting high-speed data transfer
• Surface mount packaging for automated assembly

Memory IC Applications

• Embedded memory systems requiring parallel DRAM
• Industrial control units with wide temperature requirements
• Consumer electronics utilizing low-voltage logic

Memory IC Procurement Notes

Verify the specific suffix 'TR' indicates tape-and-reel packaging if required for your assembly line. Confirm the RoHS status and lead-free designation directly with the manufacturer or authorized distributor documentation before procurement. Ensure the 78-VFBGA footprint matches your PCB design constraints.

Memory IC Selection Notes

Select this component when a parallel interface is mandatory rather than serial alternatives. The DDR3L specification suits applications needing reduced power consumption compared to standard DDR3. The 933 MHz speed class provides sufficient bandwidth for general-purpose embedded memory tasks.

Memory IC Part Context

This part belongs to the NDL28 series from Insignis Technology Corporation, focusing on SDRAM solutions. It represents a specific capacity and speed grade within their portfolio of parallel memory devices designed for industrial and commercial electronic applications.

Memory IC Replacement Considerations

Consult official substitution lists for compatible parts within the same family. Verify pin compatibility and electrical specifications before replacing existing inventory.
