NDL28PFR-8KIT TR

Memory IC Overview

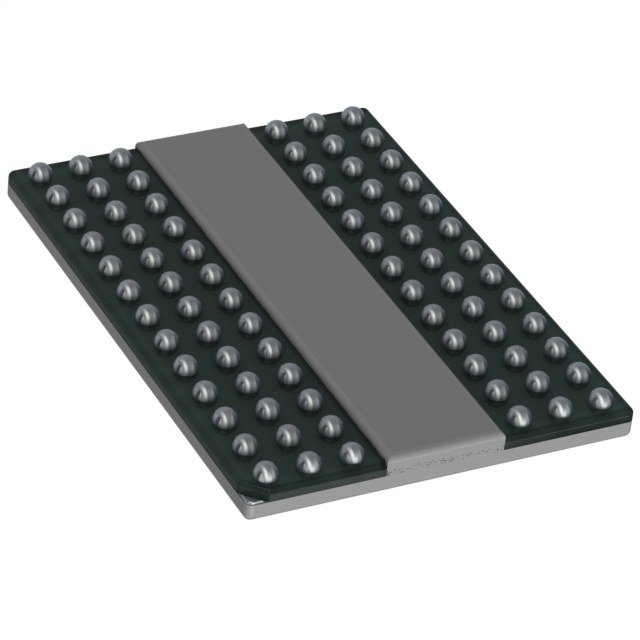

The NDL28PFR-8KIT TR is a parallel SDRAM memory IC manufactured by Insignis Technology Corporation. It features a storage capacity of 1Gb organized as 64M x 16 bits. The device operates with a clock frequency of 800 MHz and has an access time of 20 ns. It supports a supply voltage range of 1.425V to 1.575V. The component utilizes a 96-VFBGA package measuring 8x13 mm. It is designed for surface mount installation and functions within a temperature range of -40°C to 95°C (TC).

Memory IC Feature Summary

• Supports parallel interface architecture for high-speed data transfer.
• Operates on low-voltage power supply specifications.
• Designed for extended industrial temperature environments.

Memory IC Applications

• Embedded systems requiring volatile memory storage.
• Industrial control units operating in wide temperature ranges.
• Consumer electronics utilizing DDR3 SDRAM technology.

Memory IC Procurement Notes

Verify the specific suffix 'TR' indicates tape and reel packaging when sourcing. Confirm the manufacturer is Insignis Technology Corporation, as distributors may list equivalent parts from other vendors. Check RoHS3 compliance status for environmental regulations. Ensure the 96-FBGA footprint matches the target PCB design. Validate that the 1Gb density meets system requirements before procurement.

Memory IC Selection Notes

Select this component for applications requiring 1Gb parallel SDRAM with DDR3 compatibility. The 800 MHz clock speed suits high-bandwidth needs. The -40°C to 95°C rating allows use in harsh environments. Compare the 20 ns access time against system latency constraints. Ensure the 96-VFBGA package fits available board space.

Memory IC Part Context

This part belongs to the NDT16 series of parallel SDRAM devices. It represents a mid-density solution within the manufacturer's volatile memory portfolio. The 96-FBGA package is common for this class of components. It serves as a direct replacement for older parallel DRAM technologies in modern designs.

Memory IC Replacement Considerations

NDT16PFJ-8KIT TR is listed as a parameter-equivalent substitute. Verify pinout and electrical specifications match exactly before substitution. Both parts share the same 1Gb capacity and 96-FBGA package. Confirm availability as the original part status may vary.
