NDL46PFP-9MIT

Memory IC Overview

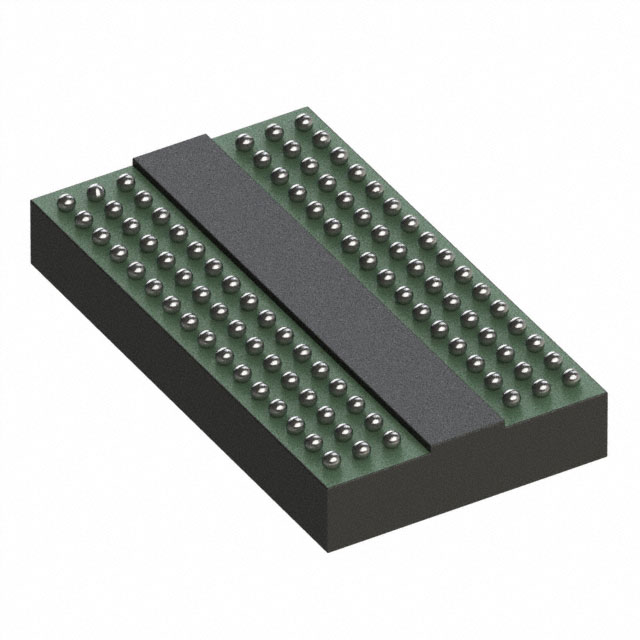

The NDL46PFP-9MIT is a DDR3L SDRAM memory IC manufactured by Insignis Technology Corporation. It features a density of 4 Gbit organized as 256M x 16 bits. The device supports a parallel interface with a clock frequency of 933 MHz and a data rate of 1866 Mbps. Operating voltage ranges from 1.283 V to 1.45 V, typically at 1.35 V. It is housed in a 96-FBGA package measuring 7.5x13.5 mm. The component operates within an ambient temperature range of -40°C to +95°C.

Memory IC Feature Summary

• Compact and energy-efficient design suitable for IoT applications
• Parallel memory interface supporting high-speed data transfer
• Low voltage operation compatible with DDR3L standards

Memory IC Applications

• Internet of Things (IoT) devices
• Embedded systems requiring compact memory solutions
• Portable electronic equipment

Memory IC Procurement Notes

Verify the exact package dimensions and pinout configuration against the official datasheet before PCB layout finalization. Confirm the operating voltage range requirements match your system's power supply rails. Ensure thermal management strategies account for the maximum junction temperature specifications provided by the manufacturer.

Memory IC Selection Notes

Select this component when a low-power, small-footprint SDRAM solution is required for embedded applications. The 96-FBGA package offers space efficiency compared to larger packages. Consider the 933 MHz speed capability if higher bandwidth is needed within the DDR3L voltage constraints.

Memory IC Part Context

Insignis Technology Corporation specializes in DRAM design and manufacturing. This part belongs to their DDR3L SDRAM line, targeting markets where power consumption and physical size are critical constraints. The technology focuses on providing reliable memory solutions for modern connected devices.

Memory IC Replacement Considerations

The IS43TR16256AL-107MBLI is listed as a parametric equivalent. Verify compatibility regarding pinout, timing parameters, and voltage levels before substitution. Cross-reference with official manufacturer lists for confirmed substitutes.
