NDL48PFQ-8KET is listed in the Memory IC range at ChipApex. The manufacturer field lists Insignis Technology Corporation. Its product description is IC DRAM 4GBIT POD 78FBGA. Review the specifications below when checking this part for your BOM.
Memory IC specifications for NDL48PFQ-8KET
- Description：IC DRAM 4GBIT POD 78FBGA
- Series：-
- Mfr：Insignis Technology Corporation
- Package：Tray
- Memory Type：Volatile
- Memory Format：DRAM
- Technology：SDRAM - DDR3L
- Memory Size：4Gbit
- Memory Organization：512M x 8
- Memory Interface：POD
- Clock Frequency：800 MHz
- Write Cycle Time - Word, Page：-
- Voltage - Supply：1.283V ~ 1.45V
- Operating Temperature：0°C ~ 95°C (TC)
- Mounting Type：Surface Mount

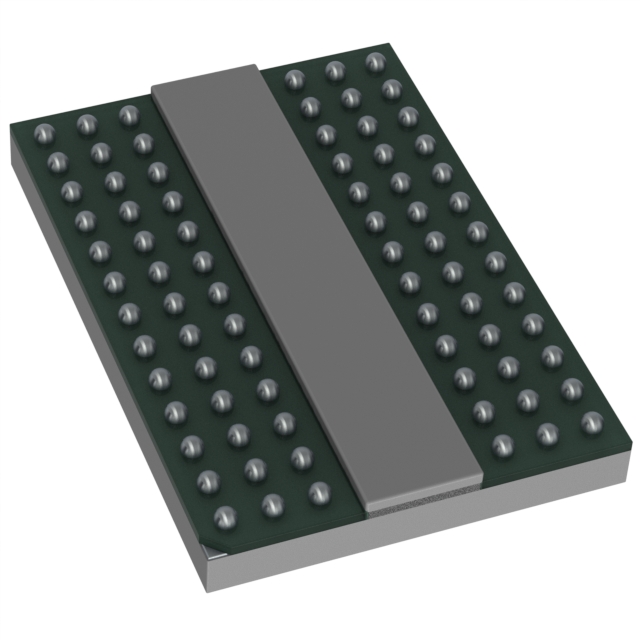

- Package / Case：78-TFBGA
- Supplier Device Package：78-FBGA (7.5x10.6)
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for NDL48PFQ-8KET
Memory IC Overview
The NDL48PFQ-8KET is a DDR3L SDRAM component manufactured by Insignis Technology Corporation. It features a total storage capacity of 4Gbit, organized as 256M x 16 bits. The device operates at a clock frequency of 800 MHz with a data rate of 1600 Mbps. It requires a supply voltage of 1.35 V and utilizes a BGA96 package. The operational temperature range extends from 0°C to 95°C.
Memory IC Feature Summary
- Supports low-voltage operation at 1.35V for enhanced energy efficiency
- Provides high-speed data transfer capabilities via DDR3L technology
- Utilizes a compact BGA96 surface-mount package design
Memory IC Applications
- Embedded systems requiring dense memory solutions
- Industrial control units operating within specified thermal limits
- Consumer electronics utilizing low-power DRAM architectures
Memory IC Procurement Notes
Verify the specific suffix and packaging configuration against official manufacturer documentation before ordering. Confirm that the required voltage level and temperature range align with your system design constraints. Ensure compatibility with the host controller's DDR3L interface specifications. Cross-reference part numbers with authorized distributors to avoid counterfeit components.
Memory IC Selection Notes
Select this component when a 4Gbit density and 16-bit width are required in a BGA96 footprint. Consider the 1.35V operating voltage for power-sensitive designs. Evaluate the 0°C to 95°C temperature range against environmental conditions. Compare performance metrics such as the 1600 Mbps data rate with alternative memory solutions to ensure system timing requirements are met.
Memory IC Part Context
Insignis Technology Corporation operates as a fabless memory manufacturer focused on DRAM design and production. The company holds ISO 9001 certification and aims to differentiate its memory products through specialized engineering approaches. This component belongs to their DDR3L series, targeting applications needing reliable volatile memory storage.
Memory IC Replacement Considerations
Consult official substitution guides for compatible parts. Verify pinout and electrical parameter alignment before replacing.
