NDL88PFO-8KIT TR

Memory IC Overview

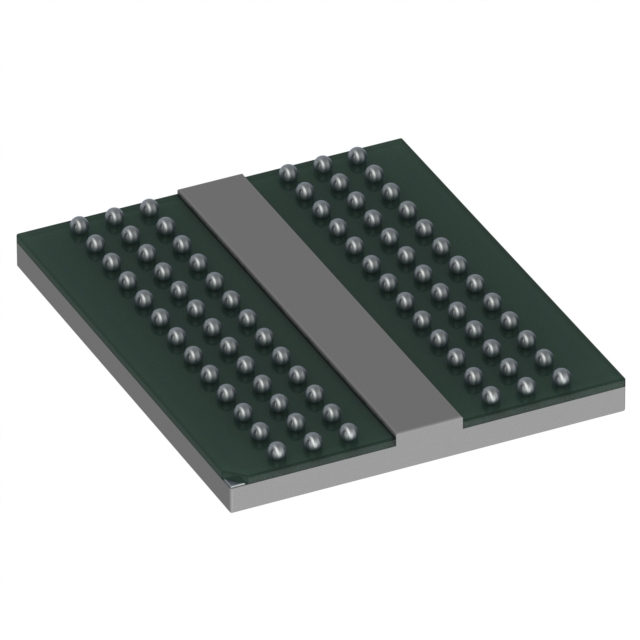

The NDL88PFO-8KIT TR is an 8Gbit DDR3L SDRAM memory IC manufactured by Insignis Technology Corporation. It features a parallel interface with a data width of x8 and supports clock frequencies up to 800 MHz. The component utilizes a 78-FBGA package with dimensions of 9x10.6 mm and a height of 1.2 mm. Key electrical parameters include a access time of 20 ns and timing specifications of 1600-11-11-11. It operates within an industrial temperature range of -40°C to 95°C, ensuring reliability in demanding environments.

Memory IC Feature Summary

• Deploys DDR3L SDRAM architecture for precise and reliable memory performance under demanding conditions.
• Supports high-speed parallel data transfer with configurable timing parameters.
• Designed for industrial-grade operation across extended temperature ranges.

Memory IC Applications

• Industrial embedded systems requiring robust memory solutions
• Automotive electronics operating in harsh thermal environments
• Consumer devices utilizing low-power DDR3L standards

Memory IC Procurement Notes

Verify the exact part number suffix against official Insignis Technology Corporation documentation to confirm package type and temperature grade. Ensure compatibility with system voltage requirements for DDR3L operation. Cross-reference datasheet revisions to validate timing parameters and pinout configurations before integration into final designs.

Memory IC Selection Notes

Select this component when an 8Gbit capacity with x8 organization is required for space-constrained applications due to its compact FBGA footprint. Consider the industrial temperature rating for deployments outside standard commercial limits. Evaluate power consumption profiles relative to other DDR3L options to ensure compliance with system energy budgets.

Memory IC Part Context

This part belongs to the NDL8 series of SDRAM components from Insignis Technology Corporation. The series includes various densities and organizations tailored for different memory subsystem needs. The NDL88PFO variant specifically addresses high-density requirements within the DDR3L standard framework.

Memory IC Replacement Considerations

Consult official substitution guides for compatible parts with identical pinouts and electrical characteristics. Verify that alternative suppliers offer matching timing parameters and temperature ratings to maintain system stability without redesigning the memory interface.
