NDS36PBA-16AT

Memory IC Overview

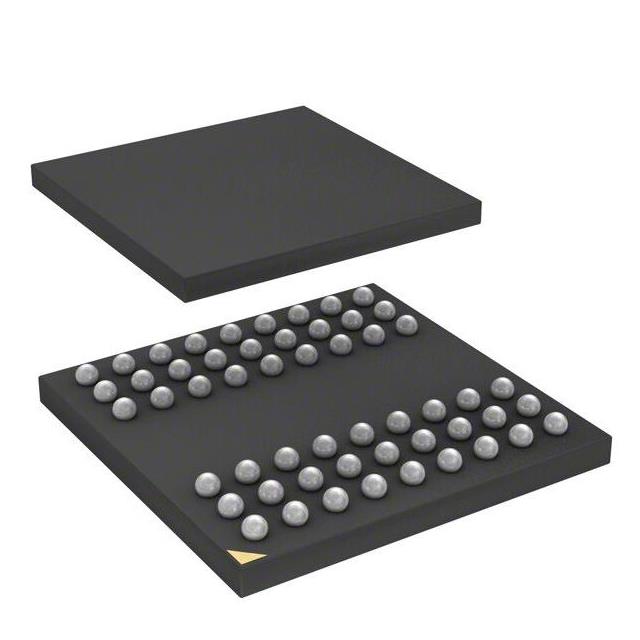

The NDS36PBA-16AT is a 256 Mbit SDRAM manufactured by Insignis Technology Corporation. It features an LVTTL interface and operates at a clock frequency of 166 MHz with a 5 ns access time. The device is housed in a 54-pin FBGA package measuring 8x8 mm. Internally, it is configured as four banks of 4M words x 16 bits.

Memory IC Feature Summary

• High-speed CMOS synchronous DRAM architecture
• LVTTL interface for system compatibility
• Four-bank internal organization

Memory IC Applications

• Embedded memory systems
• Consumer electronics devices
• Industrial control units

Memory IC Procurement Notes

Verify the specific suffix 'AT' to confirm the -40°C to 105°C industrial temperature range and 8x8 FBGA package. Ensure the order specifies the TR tape-and-reel format if required. Cross-reference the manufacturer's latest datasheet to confirm pinout and electrical characteristics before integration.

Memory IC Selection Notes

Select this component for applications requiring 256 Mbit capacity with a 16-bit data width. The 166 MHz speed suits moderate-performance embedded designs. Consider the 54-FBGA package for space-constrained PCB layouts. Verify thermal requirements against the industrial temperature rating.

Memory IC Part Context

This part belongs to the NDS series of SDRAMs from Insignis Technology Corporation. Similar variants include the NDS36PT5-16IT in TSOP II packaging and the NDS36PBA-20ET with higher clock speeds. These components share the same 256 Mbit density but differ in interface type, package, and performance metrics.

Memory IC Replacement Considerations

Direct substitutes include NDS36PT5-16IT (TSOP II) or NDS36PBA-20ET (higher speed). Verify pin compatibility and timing parameters when replacing.
