NDS96PT4-16IT TR

$1.28

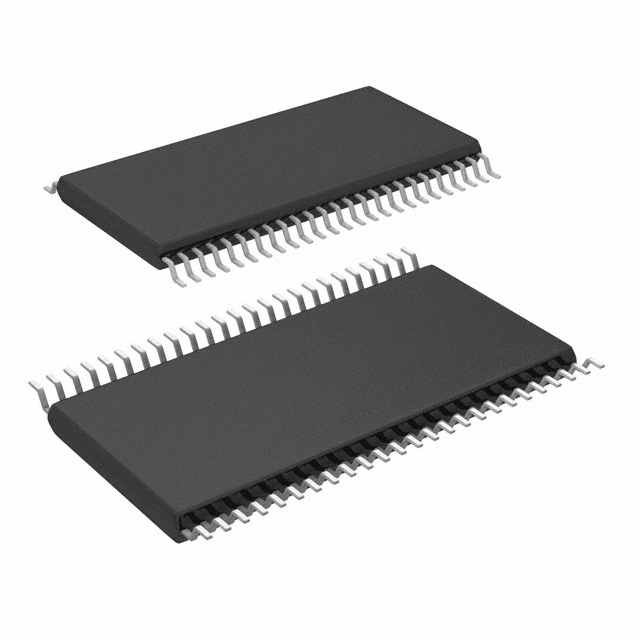

Description：IC DRAM 16MBIT LVTTL 50TSOP II
Series：-
Mfr：Insignis Technology Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:22f43b017471 Category: Memory IC Brand: Insignis Technology Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NDS96PT4-16IT TR is listed in the Memory IC range at ChipApex. The manufacturer field lists Insignis Technology Corporation. Its product description is IC DRAM 16MBIT LVTTL 50TSOP II. Review the specifications below when checking this part for your BOM.

Memory IC specifications for NDS96PT4-16IT TR

Description：IC DRAM 16MBIT LVTTL 50TSOP II
Series：-
Mfr：Insignis Technology Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Memory Type：Volatile
Memory Format：DRAM
Technology：SDRAM
Memory Size：16Mbit
Memory Organization：1M x 16
Memory Interface：LVTTL
Clock Frequency：166 MHz
Write Cycle Time - Word, Page：-
Voltage - Supply：3V ~ 3.6V
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：50-TSOP (0.400", 10.16mm Width)
Supplier Device Package：50-TSOP II
Access Time：-
Grade：-
Qualification：-

Memory IC datasheet and documents for NDS96PT4-16IT TR

NDS96PT4-16IT TR

Memory IC Overview

The NDS96PT4-16IT TR is a Synchronous Dynamic Random Access Memory (SDRAM) integrated circuit manufactured by Insignis Technology Corporation. It provides a storage capacity of 16 Megabits organized as 1 Megabit by 16 bits. The device utilizes an LVTTL interface and operates with a clock frequency of 166 MHz. It functions within a supply voltage range of 3V to 3.6V and supports an operating temperature range from -40°C to 85°C. The component is housed in a 50-pin Thin Small Outline Package (TSOP II) with a width of 10.16mm, designed for surface mount installation.

Memory IC Feature Summary

Supports high-speed data transfer via LVTTL interface at 166 MHz
Operates reliably across extended industrial temperature ranges
Designed for low-voltage applications with 3V to 3.6V power supply
Utilizes compact surface-mount packaging for space-constrained designs

Memory IC Applications

Embedded memory systems requiring volatile storage
Industrial control units operating in variable temperatures
Consumer electronics utilizing LVTTL-compatible controllers

Memory IC Procurement Notes

Verify the specific suffix 'TR' indicates tape and reel packaging when ordering. Confirm that the LVTTL interface matches the host controller logic levels. Ensure the 50-TSOP II footprint aligns with the printed circuit board layout. Check RoHS compliance status if environmental regulations apply to the final assembly process.

Memory IC Selection Notes

Select this component when a 16Mb density is required with LVTTL compatibility. Consider the 166 MHz speed grade for performance needs. Evaluate the 50-pin TSOP II package dimensions against available board space. Compare the -40°C to 85°C temperature rating against environmental requirements.

Memory IC Part Context

This part belongs to the NDS96 series of SDRAM devices from Insignis Technology Corporation. The series offers various densities and package options for different system requirements. The NDS96PT4 variant specifically targets applications needing moderate memory capacity with standard parallel interfaces.
