NFA18SL487V1A45L

Overview

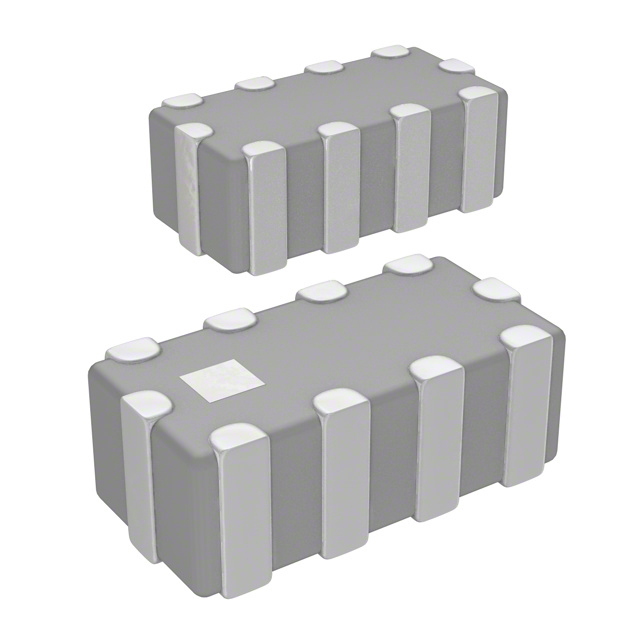

The NFA18SL487V1A45L is a second-order LC EMI filter array manufactured by Murata Electronics. It features four channels within a compact 0603 (1608 metric) surface-mount package. The component has a cutoff frequency of 480 MHz and supports a maximum current of 100 mA with a rated voltage of 10 V DC. It operates within a temperature range of -40°C to +85°C and complies with RoHS standards.

Feature Summary

• Compact 0603 footprint design for space-constrained applications
• Four-channel configuration for multi-line signal filtering
• Steep attenuation characteristics for effective noise suppression

Applications

• Portable electronic devices requiring EMI suppression
• Data line protection in consumer electronics
• General-purpose noise filtering in compact circuits

Procurement Notes

Verify the component status as this part may be subject to obsolescence or discontinuation notices from the manufacturer. Confirm availability through authorized distributors and check for valid replacement alternatives if the specific model is no longer recommended for new designs.

Selection Notes

Select this component when a low-profile, multi-channel LC filter is required for high-frequency noise reduction. Ensure the application current does not exceed 100 mA and the operating environment remains within the specified temperature limits. Verify compatibility with standard SMT assembly processes.

Part Context

This component belongs to the Murata NFA18SL series of combined EMI filters. The series is characterized by its small size and deep insertion loss capabilities. It is designed to replace discrete components with a single integrated solution for improved performance and board space efficiency.

Replacement Considerations

Check for official substitute part numbers from Murata Electronics if this item is discontinued. Verify that any alternative maintains the same 0603 package dimensions, channel count, and electrical specifications to ensure mechanical and functional compatibility.
