NFG0QHB372HS2D

Common Mode Chokes Overview

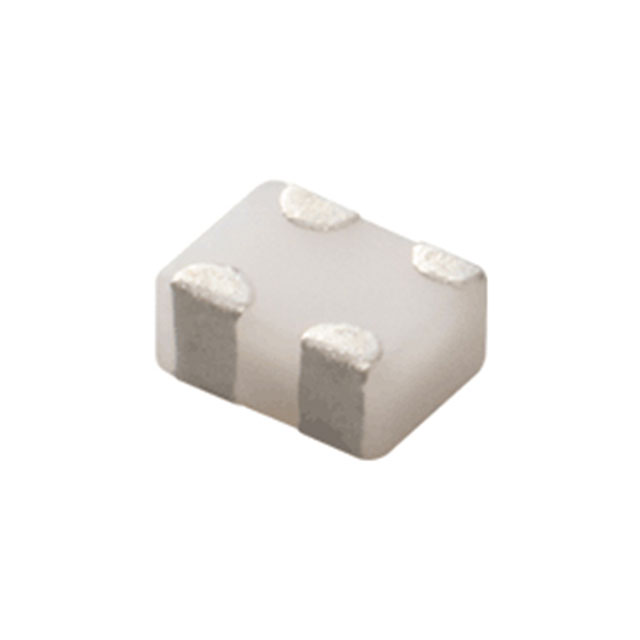

The NFG0QHB372HS2D is a Murata Electronics common mode choke filter designed for surface mount technology. It operates within a temperature range of -40°C to +85°C and features an unshielded construction in a compact 0605 metric package measuring 0.65 mm x 0.5 mm x 0.3 mm. The component provides an impedance of 9 Ohms at 100 MHz with a maximum DC current rating of 100 mA and a maximum DC resistance of 2.375 Ohms.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for high-speed data lines
• Compatible with MIPI C-PHY transmission standards
• Features a compact, unshielded surface mount design

Common Mode Chokes Applications

• MIPI C-PHY interface circuits
• High-speed data line noise filtering
• Portable electronic devices requiring compact EMI suppression

Common Mode Chokes Procurement Notes

Verify the specific suffix HS2D against official Murata documentation to confirm exact impedance and tolerance specifications. Confirm RoHS compliance status through the manufacturer's datasheet before integration. Check for end-of-life notices as distribution availability may vary by region.

Common Mode Chokes Selection Notes

Select this component when designing for MIPI C-PHY applications requiring low-profile noise filtering. Ensure the PCB layout accommodates the 0605 footprint dimensions. Verify that the 100 mA current rating meets the operational requirements of the target circuit without saturation.

Common Mode Chokes Part Context

This part belongs to the NFG0QHB series of common mode chokes from Murata Electronics. The series is engineered for high-frequency noise attenuation in portable electronics. It serves as a specialized solution for maintaining signal integrity in modern mobile communication interfaces.

Common Mode Chokes Replacement Considerations

Murata suggests the NFP0QHB372HS2D as a suggested alternate part number. Verify electrical compatibility and physical dimensions before substitution.
