Product Detailed Parameters
- Description：CAP FEEDTHRU
- Series：EMIFIL®, NFM15
- Mfr：Murata Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Voltage - Rated：4V
- Current：2:00 AM
- Operating Temperature：-55°C ~ 85°C
- Mounting Type：Surface Mount
- Package / Case：0402 (1005 Metric), 3 PC Pad
- Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
- Capacitance：7.5 µF
- Tolerance：±20%
- DC Resistance (DCR) (Max)：40mOhm
- Insertion Loss：-
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：0.026" (0.65mm)
- Thread Size：-
Download product information
Overview

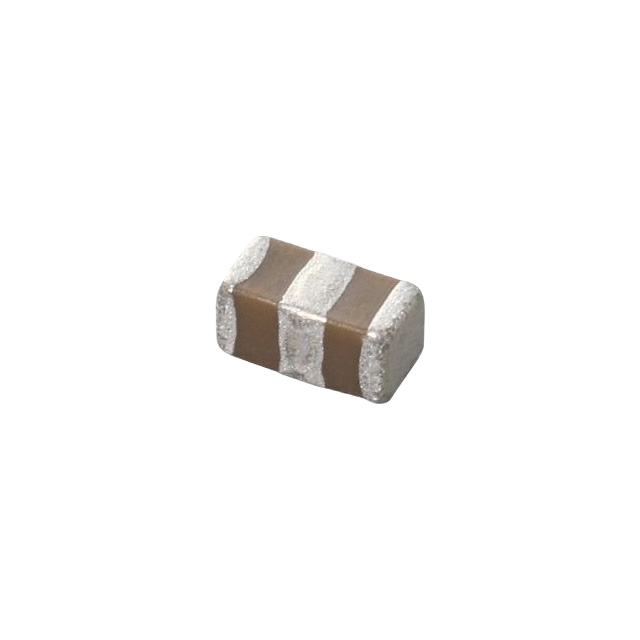

The Murata NFM15PC755R0G3D is a three-terminal feedthrough capacitor from the EMIFIL NFM15PC series. It features a capacitance of 7.5 µF with a DC voltage rating of 4 VDC and a tolerance of ±20%. The component utilizes an SMD/SMT termination type within a 0402 (1005 metric) package, measuring 1 mm in length, 0.5 mm in width, and 0.5 mm in height. It supports a current rating of 2 A and has a maximum DC resistance of 40 mOhms. The grounding terminal measures 0.35 mm. Operating temperatures range from -55°C to +85°C.
Feature Summary
- Three-terminal architecture providing low equivalent series inductance for effective high-frequency noise suppression
- Feedthrough design integrating filtering functionality directly into the circuit path
- General-purpose construction suitable for standard electronic applications
Applications
- Power supply line filtering
- Noise suppression in portable devices
- Signal integrity management in compact electronics
Procurement Notes
Verify the specific suffix G3D against official Murata documentation to confirm packaging configuration and tape-and-reel specifications. Ensure the 4VDC rating aligns with system requirements. Confirm RoHS compliance status through the manufacturer's latest datasheet before procurement.
Selection Notes
Select this component when space-constrained designs require high capacitance values in a 0402 footprint. The 2A current rating supports moderate power lines. Verify that the 4VDC rating exceeds the maximum operating voltage to ensure reliability under all conditions.
Part Context
This part belongs to the Murata EMIFIL NFM15PC series of general-purpose low ESL capacitors. The series offers various capacitance values within the 0402 package size, designed for efficient noise reduction in small form factor electronics.
Replacement Considerations
Consult official Murata substitution guides for verified equivalents. Cross-reference capacitance, voltage rating, and physical dimensions to ensure compatibility without modifying the PCB layout.
