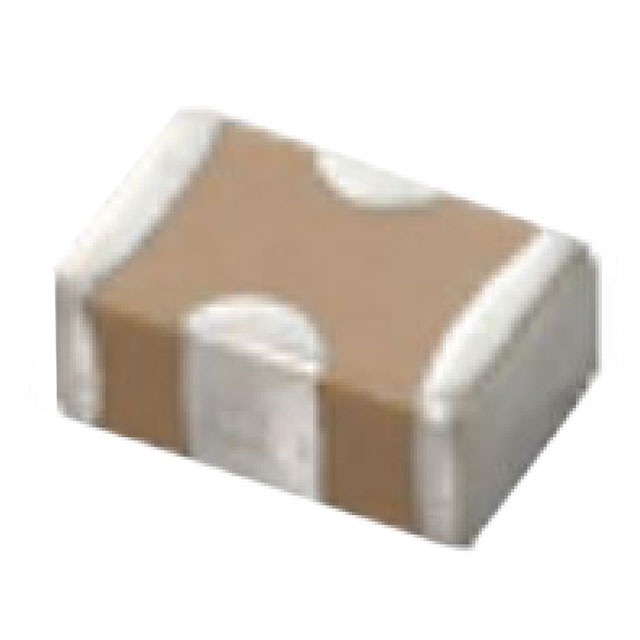

NFM15TC435D0E3D

$0.26

Description：CAP MLCC 3 TERM 4.3UF 4V 0402
Series：EMIFIL®, NFM15
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e28bb4a42550 Category: Feed Through Capacitors Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP MLCC 3 TERM 4.3UF 4V 0402
Series：EMIFIL®, NFM15
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Voltage - Rated：2.5V
Current：2:00 AM
Operating Temperature：-55°C ~ 125°C
Mounting Type：Surface Mount
Package / Case：0402 (1005 Metric), 3 PC Pad
Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
Capacitance：4.3 µF
Tolerance：±20%
DC Resistance (DCR) (Max)：30mOhm
Insertion Loss：-
Temperature Coefficient：-
Ratings：-
Height (Max)：0.020" (0.50mm)
Thread Size：-

Download product information

NFM15TC435D0E3D

Overview

The Murata NFM15TC435D0E3D is a three-terminal feedthrough capacitor from the EMIFIL NFM15TC series. It features a capacitance of 4.3 µF with a tolerance of ±20%. The device has a DC voltage rating of 2.5 VDC and supports a rated current of 2 A. It utilizes SMD/SMT termination in a 0402 (1005 metric) package measuring 1 mm x 0.5 mm x 0.3 mm. Key electrical specifications include a maximum DC resistance of 30 mOhms, an insulation resistance of 25 MOhms, and an operating temperature range from -55°C to +125°C. It holds AEC-Q200 qualification.

Feature Summary

Three-terminal feedthrough architecture designed for high-frequency noise shunting while maintaining a DC current path
Low equivalent series inductance (ESL) characteristics suitable for general-purpose filtering applications
AEC-Q200 qualified for automotive electronic reliability standards

Applications

Automotive electronic circuit noise suppression
Power line filtering in compact mobile devices
High-density PCB designs requiring low-profile EMI mitigation

Procurement Notes

Verify the specific suffix codes against official Murata documentation to confirm exact capacitance, voltage, and termination specifications. Ensure compatibility with surface mount assembly processes and check for RoHS compliance status in the latest datasheet before integration into production lines.

Selection Notes

Select this component when a 0402 footprint is required for high-capacitance filtering in automotive or portable applications. Compare against the NFM15PC series if higher temperature ratings or different voltage coefficients are needed. Verify that the 2.5 VDC rating meets the circuit's operational requirements to prevent dielectric breakdown.

Part Context

This part belongs to the Murata EMIFIL NFM15TC series of three-terminal feedthrough capacitors. These components are engineered to provide effective electromagnetic interference suppression in space-constrained environments. The series offers various capacitance values within the standard 0402 package dimensions.
