NFM41CC101U2A3L

$0.61

Description：CAP FEEDTHRU 100PF 100V 1806
Series：EMIFIL®, NFM41
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:11dd6b6acd1a Category: Feed Through Capacitors Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 100PF 100V 1806
Series：EMIFIL®, NFM41
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Voltage - Rated：100V
Current：300 mA
Operating Temperature：-55°C ~ 125°C
Mounting Type：Surface Mount
Package / Case：1806 (4516 Metric), 3 PC Pad
Size / Dimension：0.177" L x 0.063" W (4.50mm x 1.60mm)
Capacitance：100 pF
Tolerance：-20%, +50%
DC Resistance (DCR) (Max)：-
Insertion Loss：-
Temperature Coefficient：-
Ratings：-
Height (Max)：0.047" (1.20mm)
Thread Size：-

Download product information

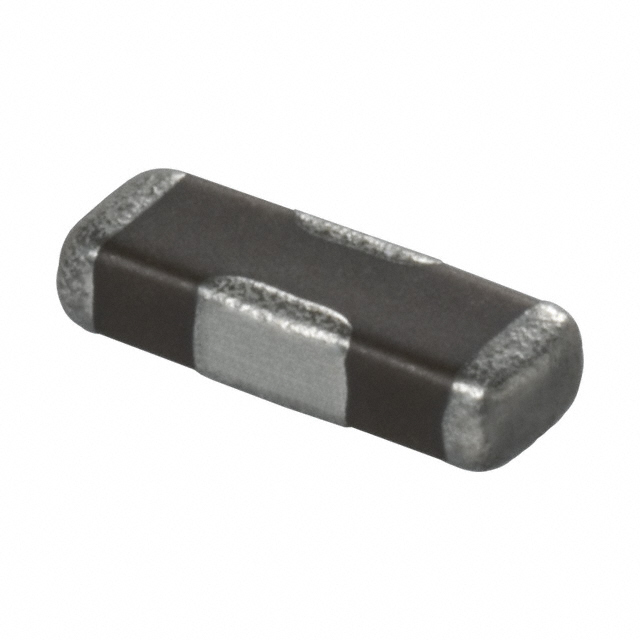

NFM41CC101U2A3L

Overview

The NFM41CC101U2A3L is a three-terminal feedthrough capacitor from the Murata EMIFIL NFM41C series. It features a capacitance of 100 pF with a tolerance of +50% and -20%. The device has a DC voltage rating of 100 VDC and a current rating of 300 mA. It utilizes an SMD/SMT termination type within a 1806 (4516 metric) package, measuring 4.5 mm in length, 1.6 mm in width, and 1 mm in height. The component operates between -55°C and +125°C, meets AEC-Q200 qualification standards, and offers an insulation resistance of 10 GOhms.

Feature Summary

Three-terminal feedthrough architecture for effective electromagnetic interference filtering
High current handling capability suitable for power line applications
Automotive-grade reliability through AEC-Q200 qualification

Applications

Electromagnetic interference (EMI) filtering in electronic circuits
Power supply input filtering for noise suppression
Signal isolation in automotive electronics systems

Procurement Notes

Verify component authenticity and datasheet alignment before integration. Confirm that the specific capacitance tolerance (+50%, -20%) matches circuit requirements. Ensure surface mount process parameters are compatible with the 1806 package dimensions. Check end-of-life status as availability may be limited.

Selection Notes

Select this component when high-frequency noise attenuation is required on power lines. The three-terminal design provides superior performance compared to standard two-terminal capacitors. Consider the 100V rating and 300mA current limit for appropriate load conditions. Verify thermal stability within the specified operating temperature range.

Part Context

This part belongs to the Murata EMIFIL NFM41C series of feedthrough capacitors. These components are designed for surface mount applications requiring compact EMI suppression solutions. The series supports various capacitance values while maintaining consistent physical dimensions and electrical characteristics across the family.
