Product Detailed Parameters
- Description：CAP FEEDTHRU 47PF 100V 1806
- Series：EMIFIL®, NFM41
- Mfr：Murata Electronics
- Package：Tape & Reel (TR)
- Voltage - Rated：100V
- Current：300 mA
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：Surface Mount
- Package / Case：1806 (4516 Metric), 3 PC Pad
- Size / Dimension：0.177" L x 0.063" W (4.50mm x 1.60mm)
- Capacitance：47 pF
- Tolerance：-20%, +50%
- DC Resistance (DCR) (Max)：-
- Insertion Loss：-
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：0.047" (1.20mm)
- Thread Size：-
Download product information
Overview

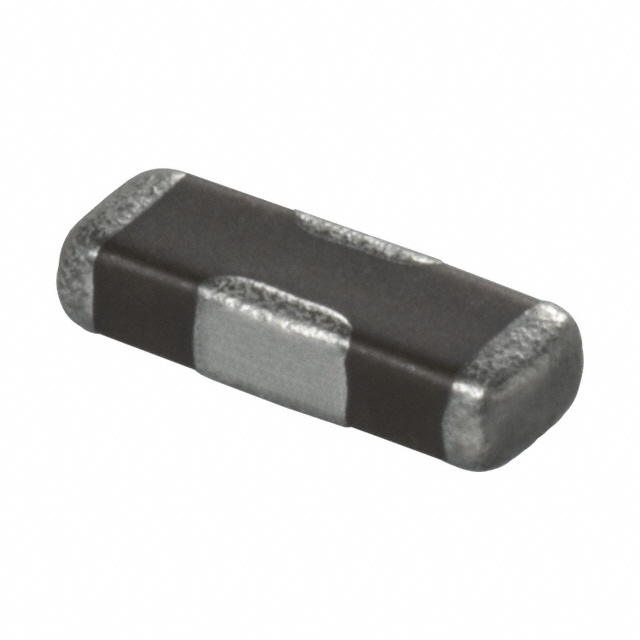

The NFM41CC470U2A3L is a three-terminal feedthrough capacitor from the Murata EMIFIL NFM41C series. It features a capacitance of 47 pF with a tolerance of +50%/-20%. The component has a DC voltage rating of 100 V and a current rating of 300 mA. It utilizes an SMD/SMT termination type within a 1806 (4516 metric) package, measuring 4.5 mm in length, 1.6 mm in width, and 1 mm in height. The device operates between -55°C and +125°C, holds AEC-Q200 qualification, and exhibits an insulation resistance of 10 GOhms.
Feature Summary
- Three-terminal feedthrough architecture for effective electromagnetic interference suppression
- Surface-mount design compatible with automated assembly processes
- Automotive-grade reliability certified under AEC-Q200 standards
Applications
- Electromagnetic interference filtering in automotive electronic systems
- Power line noise suppression in compact circuit boards
- Signal integrity protection in high-frequency applications
Procurement Notes
This component is officially listed as discontinued by the manufacturer. Availability is restricted to existing stock or secondary market sources. Verify end-of-life status and last-time buy dates through authorized distributors before integration into new designs. Ensure supply chain stability for maintenance or replacement cycles given the obsolete production status.
Selection Notes
Select this part for applications requiring small form factor EMI filtering with specific 47 pF capacitance. Consider the 1806 footprint constraints and 100 VDC rating. Evaluate thermal performance within the specified temperature range. Confirm compatibility with surface-mount reflow soldering profiles and verify that the three-terminal grounding scheme fits the PCB layout requirements.
Part Context
Part of the Murata EMIFIL NFM41C series of three-terminal feedthrough capacitors. These components are designed for high-performance noise suppression in space-constrained environments. The series offers various capacitance values within the same physical package dimensions, allowing for standardized board layouts across different filtering requirements.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, alternative sourcing requires verification of equivalent electrical parameters and mechanical dimensions from other manufacturers.
