Product Detailed Parameters
- Description：CAP FEEDTHRU 1.5UF 20% 50V 1806
- Series：EMIFIL®, NFM41
- Mfr：Murata Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Voltage - Rated：50V
- Current：6:00 AM
- Operating Temperature：-55°C ~ 85°C
- Mounting Type：Surface Mount
- Package / Case：1806 (4516 Metric), 3 PC Pad
- Size / Dimension：0.177" L x 0.063" W (4.50mm x 1.60mm)
- Capacitance：1.5 µF
- Tolerance：±20%
- DC Resistance (DCR) (Max)：9mOhm
- Insertion Loss：-
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：0.047" (1.20mm)
- Thread Size：-
Download product information
Overview

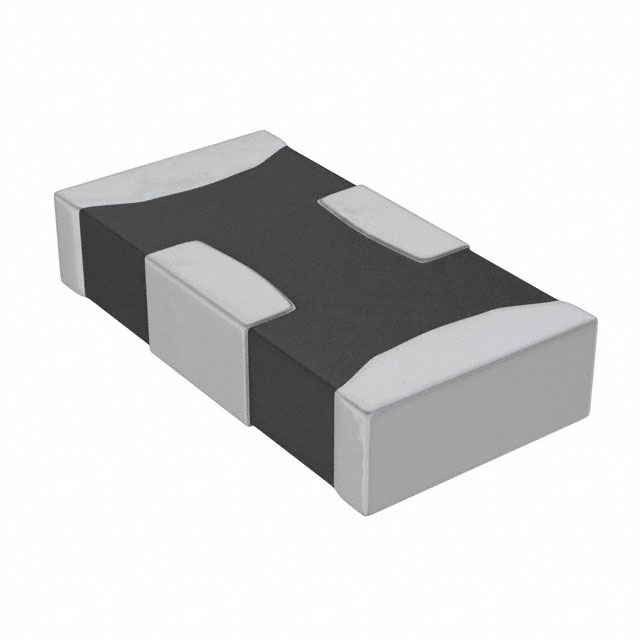

The NFM41PC155B1H3L is a three-terminal feedthrough capacitor from the Murata EMIFIL NFM41PC series. It features a capacitance of 1.5 µF with a ±20% tolerance and a DC voltage rating of 50 VDC. The component supports a rated current of 6 A and exhibits a maximum DC resistance (DCR) of 9 mΩ. Designed for surface mount technology, it utilizes an 1806 (4516 metric) package with dimensions of 4.5 mm length, 1.6 mm width, and 1.2 mm height. It operates within a temperature range of -55°C to +85°C and includes one ground terminal.
Feature Summary
- Three-terminal feedthrough architecture providing effective electromagnetic interference suppression through integrated grounding.
Applications
- High-speed digital signal line filtering in electronic circuits
- Power supply input/output noise reduction
- EMI suppression in compact surface mount assemblies
Procurement Notes
Verify the specific suffix 'H' corresponds to the 50V rating and ±20% tolerance configuration required for your design. Confirm that the 1806 footprint matches your PCB layout constraints. Ensure the 6A current rating meets the operational requirements of the target circuit path. Check RoHS compliance status against local regulatory standards before finalizing procurement.
Selection Notes
Select this component when high capacitance density is needed in a small 1806 package. The 50V rating suits low-voltage DC applications. Consider the 9mΩ DCR for minimal insertion loss in power lines. Evaluate thermal performance within the -55°C to +85°C range. Compare against lower voltage variants if system voltage permits downsizing.
Part Context
This part belongs to the Murata EMIFIL NFM41PC series of three-terminal feedthrough capacitors. These components are engineered for high-frequency noise suppression in space-constrained environments. The series offers various capacitance and voltage ratings within the same mechanical footprint, allowing for design flexibility while maintaining consistent board layout dimensions across different product iterations.
Replacement Considerations
NFM41PC155B1E3L serves as a verified substitute with identical physical dimensions and electrical characteristics except for a reduced 25V DC voltage rating. Verify that the application voltage does not exceed 25V before substituting. Other series members may differ in capacitance or voltage specifications.
