NFMJMPC226D0E3D

Overview

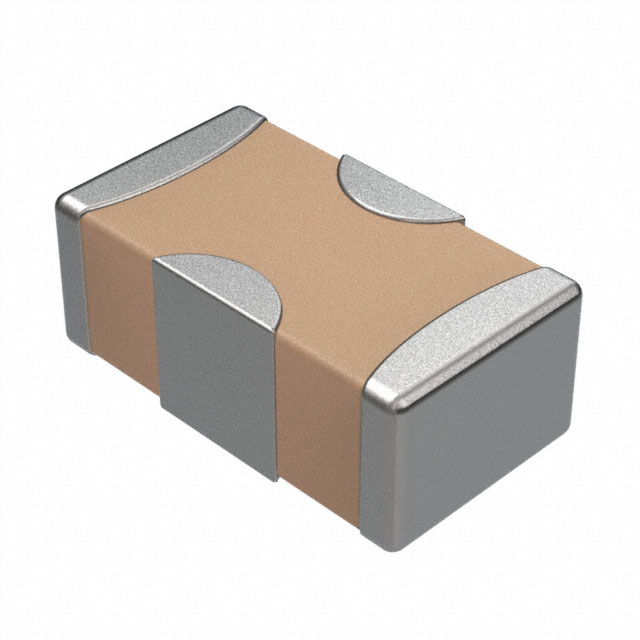

The NFMJMPC226D0E3D is a three-terminal feedthrough capacitor from Murata Electronics, designed for low ESL applications. It features a capacitance of 22 µF with a DC voltage rating of 2.5 VDC and a tolerance of ±20%. The component supports a current rating of 2 A and has a maximum DC resistance of 30 mOhms. It operates within a temperature range of -55°C to +105°C. The package dimensions are 1.2 mm in length, 0.9 mm in width, and 0.75 mm in height, corresponding to the 0504 (1209 metric) case size.

Feature Summary

• Three-terminal feedthrough structure for effective electromagnetic interference filtering
• Low equivalent series inductance design suitable for high-speed equipment noise suppression
• High current handling capability of 2 A for power line decoupling

Applications

• Noise measurement in high-speed electrical equipment
• Power supply decoupling circuits
• Electromagnetic interference filtering in compact electronic devices

Procurement Notes

Verify the specific suffix D0E3D against official Murata documentation to confirm exact termination and packaging specifications. Ensure compatibility with 0504 footprint requirements during procurement planning. Cross-reference datasheet revisions to validate performance parameters for the intended operating environment.

Selection Notes

Select this component when low inductance and high capacitance density are required in a minimal footprint. The 2.5 VDC rating necessitates careful consideration of circuit voltage levels to prevent breakdown. The three-terminal configuration offers superior high-frequency performance compared to standard two-terminal capacitors in sensitive signal paths.

Part Context

This part belongs to the NFMJMPC series of general-purpose low ESL capacitors. It is categorized under feedthrough capacitors and EMIFIL products. The series is engineered for applications requiring efficient noise suppression in space-constrained designs, leveraging multilayer ceramic technology for reliability and consistent performance across industrial temperature ranges.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
