NFZ2MSM101SN10L

Overview

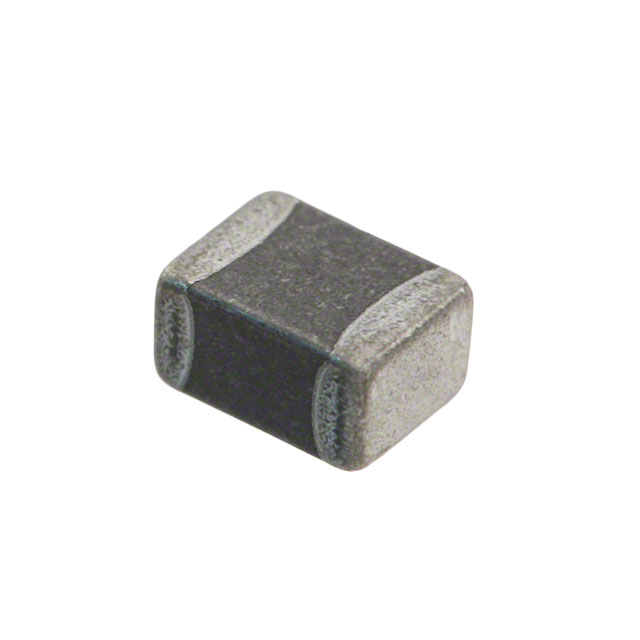

The NFZ2MSM101SN10L is a single-channel ferrite bead from the Murata EMIFIL NFZ2MSM series, housed in an 0806 (2016 metric) surface-mount package. It provides an impedance of 100 Ohms at a test frequency of 100 MHz with a tolerance of 25%. The component supports a maximum DC current of 4.0 A and exhibits a maximum DC resistance of 18 mOhms. It operates within a temperature range of -40°C to +85°C and has physical dimensions of 2.0 mm length, 1.6 mm width, and 0.9 mm height.

Feature Summary

• Designed for EMI noise suppression in power lines
• Unshielded construction suitable for general circuit applications
• Capable of handling high direct current loads

Applications

• Power line noise filtering
• General EMI suppression circuits

Procurement Notes

Verify the NRND status before integration, as this indicates the component is not recommended for new designs. Confirm that the 0806 footprint and electrical ratings align with existing schematic requirements. Ensure supply chain stability given the potential for limited availability or minimum order constraints associated with end-of-life products.

Selection Notes

Select this component when a 100 Ohm impedance at 100 MHz is required for power line filtering in an 0806 package. The 4.0 A current rating makes it suitable for higher power applications compared to lower-current alternatives. Consider the unshielded nature and operating temperature limits during thermal and electromagnetic compatibility analysis.

Part Context

This part belongs to the Murata NFZ2MSM series of chip noise filters. These components are engineered for suppressing electromagnetic interference in electronic circuits. The specific model utilizes a ferrite material optimized for broadband noise absorption while maintaining low DC resistance to minimize power loss in high-current paths.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
