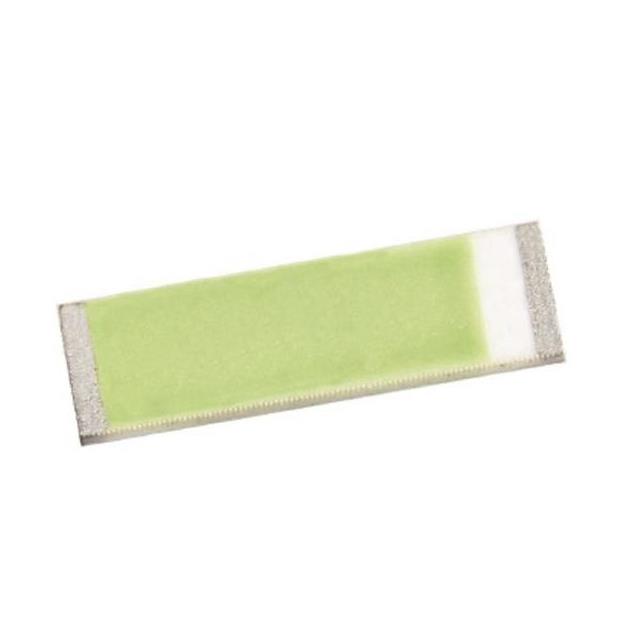

NGCL1032US0R868G1TRF is listed in the Antennas RF range at ChipApex. The manufacturer field lists NIC Components Corp. Its product description is RF ANT CER CHIP 1032 868Mhz SOL. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for NGCL1032US0R868G1TRF
- Description：RF ANT CER CHIP 1032 868Mhz SOL
- Series：NGCL
- Mfr：NIC Components Corp
- Package：Tape & Reel (TR)
- RF Family/Standard：General ISM, Lora
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：868MHz
- Frequency Range：863MHz ~ 870MHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：-2.3dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：-
- Applications：ISM, LoRa, LPWAN
- Power - Max：-
Antennas RF datasheet and documents for NGCL1032US0R868G1TRF
Antennas RF Overview
The NGCL1032US0R868G1TRF is a surface-mount ceramic chip antenna manufactured by NIC Components Corp. Designed for ISM band applications, this component operates at a center frequency of 868 MHz. It is specifically engineered for use in LoRa and LPWAN communication systems. The device utilizes a solder surface mount package type, facilitating integration into compact electronic designs requiring reliable RF transmission capabilities within the specified industrial, scientific, and medical frequency range.
Antennas RF Feature Summary
- Optimized for ISM band operations
- Designed for LoRa and LPWAN protocols
- Surface mount ceramic construction
Antennas RF Applications
- LoRa communication modules
- LPWAN network devices
- ISM band transceivers
Antennas RF Procurement Notes
Verify the complete part number including the suffix to ensure correct frequency and packaging specifications. Confirm RoHS compliance status with the supplier. Check datasheet for impedance matching requirements and recommended footprint dimensions prior to procurement to ensure compatibility with the target PCB design.
Antennas RF Selection Notes
Select this component when designing for 868 MHz ISM band applications requiring low profile surface mount antennas. Ensure the application supports LoRa or LPWAN protocols. Verify that the operating environment matches the antenna's radiation pattern requirements. Compare physical dimensions against available board space constraints before finalizing the selection.
Antennas RF Part Context
This antenna belongs to the NGCL series of ceramic chip antennas from NIC Components Corp. These components are designed to replace larger wire or ceramic resonator antennas in modern portable electronics. The series offers consistent performance across various ISM bands, providing a standardized solution for manufacturers developing compact wireless communication devices.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or verify pin-compatible alternatives based on specific electrical parameters and mechanical dimensions.
