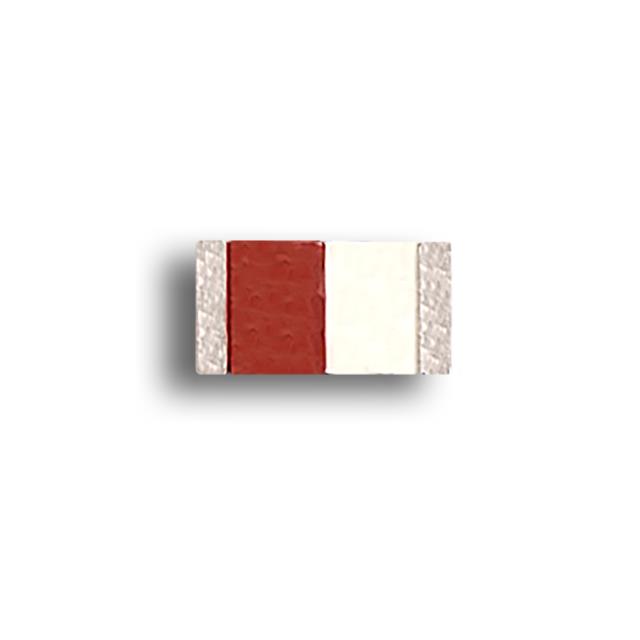

NGCL1206UV1R575G3TRF is listed in the Antennas RF range at ChipApex. The manufacturer field lists NIC Components Corp. Its product description is RF ANT CER CHIP 1206 1575Mhz SO. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for NGCL1206UV1R575G3TRF
- Description：RF ANT CER CHIP 1206 1575Mhz SO
- Series：NGCL
- Mfr：NIC Components Corp
- Package：Tape & Reel (TR)
- RF Family/Standard：GPS, Navigation, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.442GHz
- Frequency Range：1.57542Hz ~ 5.85GHz
- Antenna Type：Chip
- Number of Bands：3
- VSWR：2
- Return Loss：-
- Gain：1.5dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：-
- Applications：Bluetooth, GLONASS, GPS, Wi-Fi, WLAN
- Power - Max：-
Antennas RF datasheet and documents for NGCL1206UV1R575G3TRF
Antennas RF Overview
The NGCL1206UV1R575G3TRF is a ceramic loop chip antenna manufactured by NIC Components Corp, designed for surface mount applications. It supports multiple wireless communication standards including Bluetooth, Wi-Fi, WLAN, GPS, and GLONASS. The device operates within a frequency range of 1.57542 GHz to 5.85 GHz and features a gain of 1.5 dBi. Constructed as a solder-type component, it integrates RF functionality into a compact form factor suitable for modern electronic devices requiring multi-band connectivity.
Antennas RF Feature Summary
- Supports Bluetooth, Wi-Fi, WLAN, GPS, and GLONASS protocols
- Operates across 1.57542 GHz to 5.85 GHz frequency spectrum
- Provides 1.5 dBi gain performance
- Utilizes ceramic loop construction for surface mount integration
Antennas RF Applications
- Bluetooth-enabled consumer electronics
- Wi-Fi and WLAN modules
- GPS navigation systems
- GLONASS positioning devices
Antennas RF Procurement Notes
Verify the specific part number against official manufacturer documentation to ensure compatibility with target designs. Confirm that the ceramic loop construction and surface mount solder termination meet the assembly requirements. Cross-reference the frequency range and gain specifications with system design constraints to validate performance suitability for the intended application environment.
Antennas RF Selection Notes
Select this component when a single surface-mount solution is required to support multiple wireless standards including Bluetooth, Wi-Fi, and GNSS. The 1.5 dBi gain and broad frequency coverage make it suitable for space-constrained designs. Ensure the PCB layout accommodates the ceramic loop structure and solder termination style specified in the datasheet for optimal RF performance.
Antennas RF Part Context
This antenna belongs to the NGCL series of ceramic loop chip antennas from NIC Components Corp. These components are engineered for high reliability in compact electronic assemblies. The series provides integrated solutions for various wireless protocols, eliminating the need for separate antennas for different standards within a single device architecture.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
