NGCL5030US0R868G1TRF

Antennas RF Overview

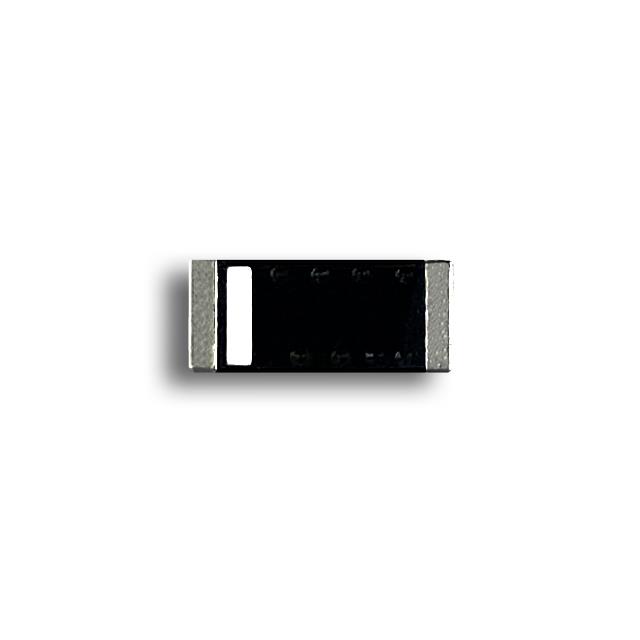

The NGCL5030US0R868G1TRF is a ceramic loop chip antenna designed for surface mount applications. It operates within the ISM 868 MHz band, supporting LoRa and LPWAN protocols. The component features a compact rectangular form factor with dimensions of 5.0 mm in length, 3.0 mm in width, and a low profile height of approximately 0.868 mm. It utilizes solder termination for reflow assembly on printed circuit boards.

Antennas RF Feature Summary

• Supports ISM 868 MHz frequency band operations
• Low temperature coefficient of frequency for stable performance
• Compact low-profile ceramic construction

Antennas RF Applications

• LoRa communication modules
• LPWAN device integration
• ISM band sensor nodes

Antennas RF Procurement Notes

Verify the specific suffix G1 against the manufacturer's current datasheet to confirm impedance matching and tuning requirements. Ensure the ordering part number matches the exact frequency specification required for the target application. Confirm RoHS compliance status through official documentation prior to procurement.

Antennas RF Selection Notes

Select this component when a low-profile solution is required for 868 MHz ISM band designs. Consider the ceramic material properties for environmental stability. Evaluate the mechanical footprint constraints against the 5.0 x 3.0 mm outline. Ensure the design accommodates the specific radiation pattern characteristics of ceramic loop antennas.

Antennas RF Part Context

This antenna belongs to the NGCL series of ceramic loop chip antennas from NIC Components Corp. These components are engineered for wireless IoT applications requiring reliable short-range communication. The series provides standardized form factors suitable for high-volume surface mount manufacturing processes.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or updated series replacements.
