NH25M22TA-10M-NSA3566A

Overview

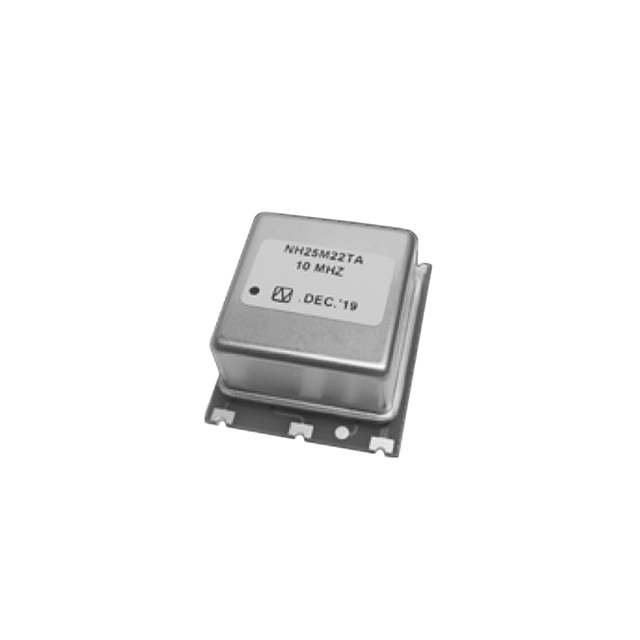

The NH25M22TA-10M-NSA3566A is a 10.0000 MHz Oven Controlled Crystal Oscillator (OCXO) manufactured by NDK. It operates on a 3.3V supply and utilizes LVCMOS output logic. The device features a frequency stability of ±3ppb and functions within an operating temperature range of -40°C to 85°C. It is housed in a surface-mount 7-SMD, No Lead package with dimensions of 25.40mm x 22.00mm.

Feature Summary

• Incorporates oven-controlled crystal technology for high-frequency stability
• Delivers low-voltage CMOS output signals
• Designed for surface-mount integration

Applications

• Telecommunications base stations
• Precision timing systems
• Test and measurement equipment

Procurement Notes

Verify the complete part number including the NSA3566A suffix against official NDK documentation to ensure correct voltage and output specifications. Confirm that the 3.3V supply requirement aligns with the target circuit design before procurement.

Selection Notes

Select this component when superior long-term stability and low phase noise are required compared to standard TCXOs or MCXOs. The OCXO architecture provides consistent performance across wide temperature variations, making it suitable for critical synchronization applications.

Part Context

This oscillator belongs to NDK's high-performance OCXO series, distinguished by internal heating elements that maintain the crystal at a constant temperature. This design minimizes frequency drift caused by ambient thermal changes, offering reliability superior to non-ovenized oscillators.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
