NI-100M-2900

Oscillators Overview

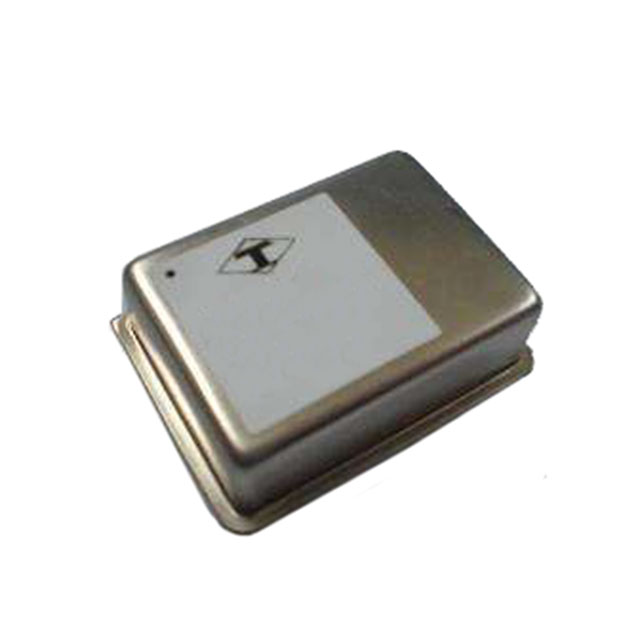

The Taitien NI-100M-2900 is a high-performance Oven-Controlled Crystal Oscillator (OCXO) operating at a nominal frequency of 100 MHz. It utilizes a sine wave output with a supply voltage of 12V and features a 6-DIP package measuring 36.32mm x 27.18mm. The device provides a frequency stability of ±50ppb and operates within a temperature range of -40°C to +85°C. Maximum supply current is specified as 350mA, ensuring reliable performance in demanding environments requiring precise timing references.

Oscillators Feature Summary

• High-frequency operation at 100 MHz for precision timing applications
• Compact 6-DIP packaging suitable for space-constrained designs
• Robust thermal stability across extended industrial temperature ranges

Oscillators Applications

• Telecommunications base station synchronization
• Test and measurement instrument reference sources
• Navigation system timing modules

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact electrical parameters and pinout configurations. Ensure that the selected variant matches the required supply voltage and output waveform specifications for the target circuit design before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a stable 100 MHz reference is required in a DIP form factor. Consider the 12V supply requirement and 350mA current draw during power budgeting. Evaluate the ±50ppb stability against application requirements to ensure it meets phase noise and long-term drift constraints for critical signal processing tasks.

Oscillators Part Context

This oscillator belongs to the NI-100M-2900 series from Taitien, designed for high-stability applications. It complements other models in the lineup by offering a specific 100 MHz output in a standard through-hole package, bridging the gap between surface-mount compactness and traditional DIP reliability for industrial equipment.

Oscillators Replacement Considerations

Cross-reference part numbers such as NI-100M-2901 for potential variants with adjusted specifications. Verify compatibility with existing board layouts and thermal management solutions when substituting similar OCXO models from the same or alternative manufacturers.
