NI-10M-3500

Oscillators Overview

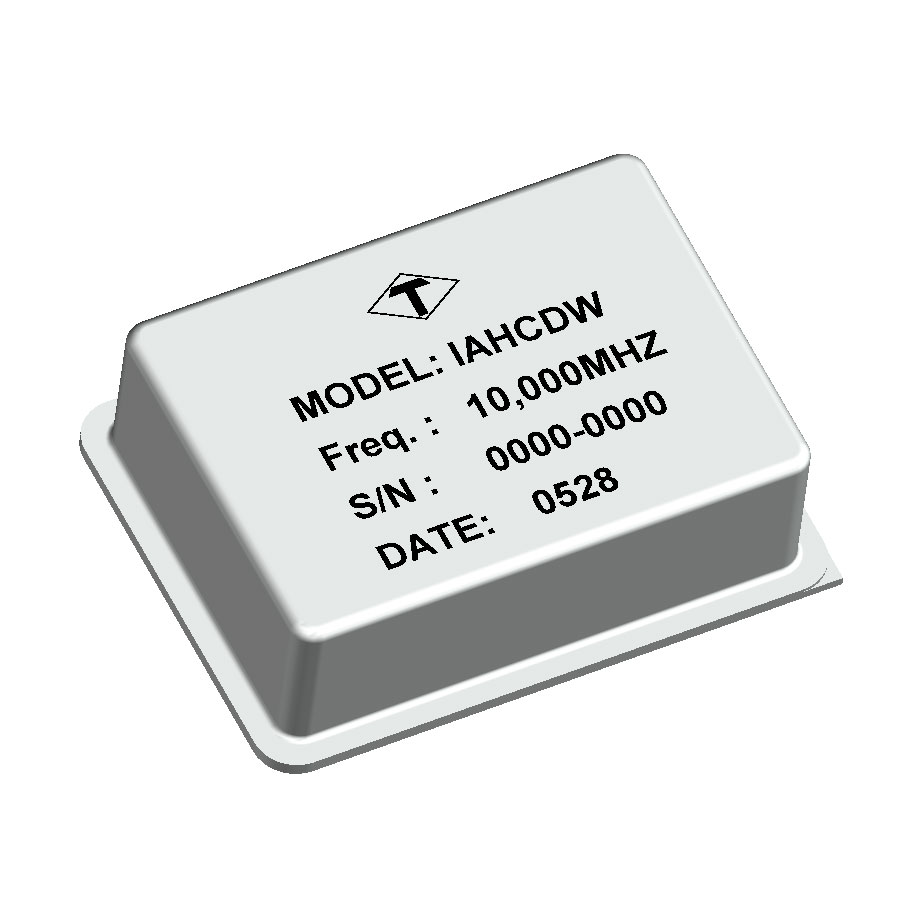

The Taitien NI-10M-3500 is a Double Oven Controlled Crystal Oscillator (DOCXO) engineered for ultra-high precision frequency generation. It operates at a nominal frequency of 10 MHz with an output type of CMOS. The device requires a supply voltage of 5V and achieves exceptional frequency stability of ±0.1 ppb over the operating temperature range of -40°C to 85°C. This component utilizes double oven technology to maintain signal integrity under extreme thermal variations, making it suitable for demanding aerospace and defense applications.

Oscillators Feature Summary

• Double oven controlled crystal oscillator architecture for superior thermal compensation
• Ultra-low phase noise and high frequency stability performance
• CMOS logic output interface for digital system integration

Oscillators Applications

• Aerospace and satellite communication systems
• Defense radar and electronic warfare equipment
• Precision test and measurement instrumentation

Oscillators Procurement Notes

Verify that the specific order suffix matches the required pinout and electrical specifications, as variants within the series may differ in package or output configuration. Confirm compliance with relevant space-grade standards if the application involves environmental certifications. Ensure the procurement channel provides authentic documentation from Taitien Electronics Co., Ltd. to guarantee component authenticity and traceability for critical infrastructure projects.

Oscillators Selection Notes

Select this model when standard OCXOs fail to meet stringent stability requirements in wide temperature ranges. The 5V supply and CMOS output are key differentiators compared to other series like the NI-10M-2800 which uses LVTTL and 12V. Consider the physical dimensions and mounting requirements for integration into existing chassis designs. Evaluate the need for double oven technology versus single oven solutions based on the specific thermal profile of the target environment.

Oscillators Part Context

The NI-10M-3500 belongs to Taitien's flagship DOCXO lineup, positioned above the NI-10M-2800 series in terms of stability and complexity. While the NI-10M-2800 offers ±5ppb/±10ppb stability with LVTTL outputs, the NI-10M-3500 targets the highest tier with ±0.1ppb stability and CMOS outputs. This places it in direct competition with other high-end space-grade oscillators requiring minimal drift over extended operational periods.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available.
