NJ-100M-6815

Oscillators Overview

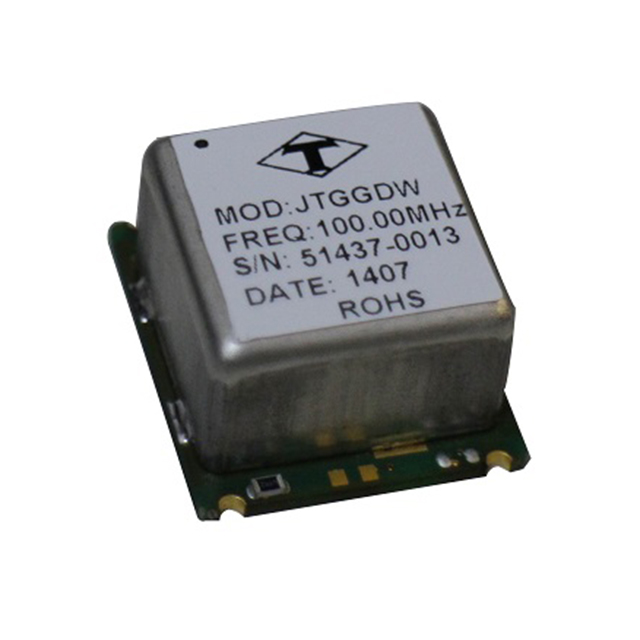

The Taitien NJ-100M-6815 is an Oven-Controlled Crystal Oscillator (OCXO) designed for high-frequency stability applications. It operates at a nominal frequency of 100 MHz and utilizes a sine wave output format. The component requires a maximum control voltage of 10.00 V and functions within a supply voltage range of 0.00 V to 10.00 V. It features an aging rate of 0.5 PPM per first year, ensuring long-term frequency precision. The device is housed in a 6-SMD, No Lead package and complies with RoHS standards.

Oscillators Feature Summary

• Provides stable sine wave output via oven-controlled crystal technology
• Ensures high frequency precision with low annual aging characteristics
• Supports wide control voltage input ranges for flexible integration

Oscillators Applications

• High-performance communication systems requiring precise timing
• Test and measurement equipment demanding stable reference frequencies
• Navigation and positioning systems utilizing 100 MHz signals

Oscillators Procurement Notes

Verify the specific suffix codes against official Taitien documentation to confirm exact electrical tolerances and packaging variations. Ensure that the procurement channel provides valid traceability for RoHS compliance status. Cross-reference the part number with the latest datasheet revisions to confirm active status and availability of technical support resources before finalizing orders.

Oscillators Selection Notes

Select this OCXO when superior short-term and long-term stability is required compared to standard TCXO or VCXO solutions. Consider the 100 MHz frequency point for applications needing direct harmonic generation or specific clock distribution requirements. Evaluate the power consumption and thermal management needs associated with oven-controlled operation in the target environment.

Oscillators Part Context

This component belongs to the Taitien NJ-100M series of oven-controlled crystal oscillators. The series is engineered for applications where frequency stability is critical over varying temperature conditions. The 6-SMD package allows for surface-mount assembly, facilitating compact design layouts in modern electronic devices while maintaining robust performance characteristics.

Oscillators Replacement Considerations

Consult official substitution lists for compatible OCXO models from Taitien or other manufacturers offering equivalent 100 MHz specifications. Verify pinout compatibility and thermal requirements when considering alternative sources to ensure seamless integration without circuit redesign.
