NKEECCJNNY-10.000000

Oscillators Overview

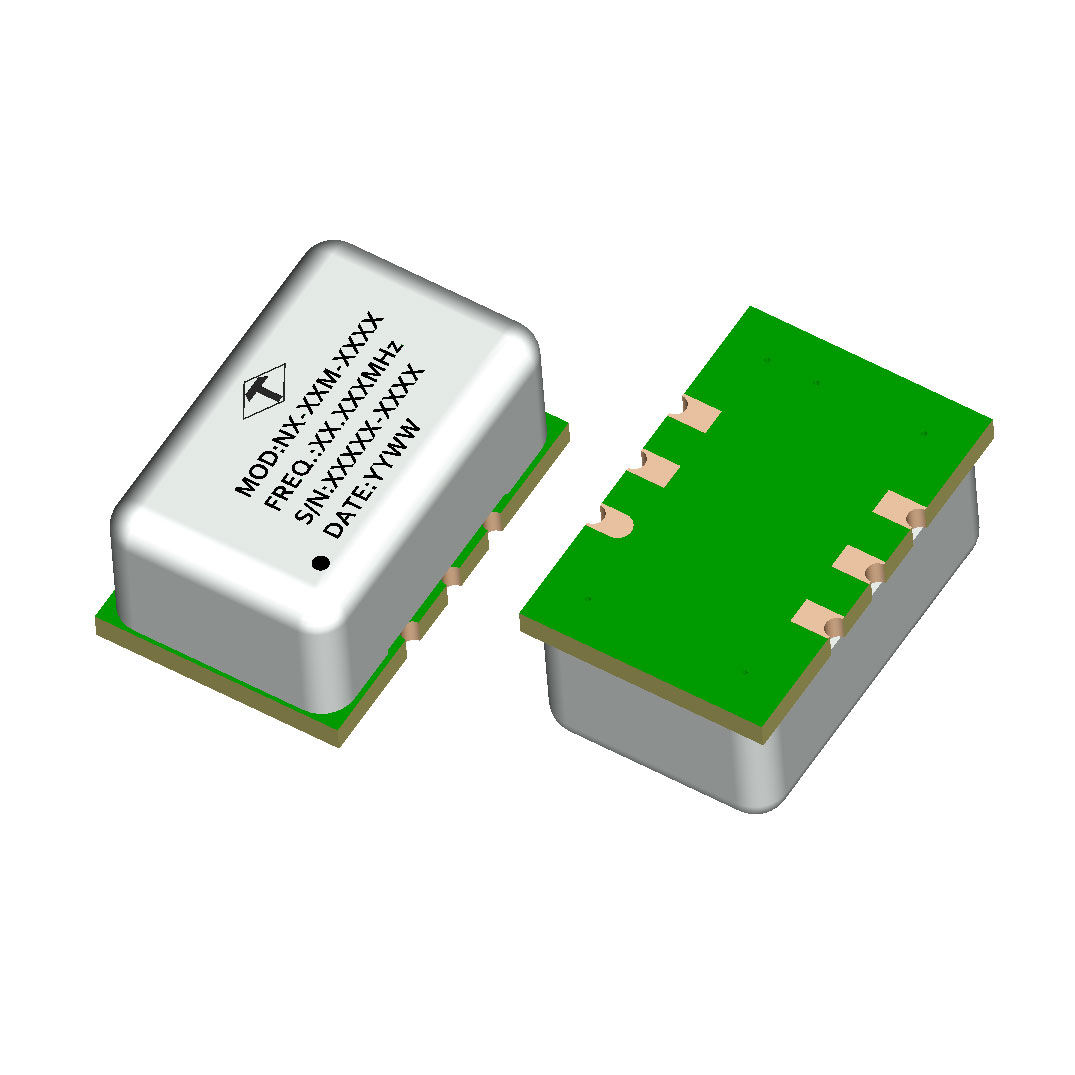

The Taitien NKEECCJNNY-10.000000 is a 10 MHz Oven Controlled Crystal Oscillator (OCXO) operating at 3.3V with CMOS output. It features a 6-SMD, No Lead package measuring 14.5 x 9.6 x 6.5 mm. The device provides ±30 ppb frequency stability over the -40°C to +85°C temperature range. Phase noise specifications are -92 dBc/Hz at 10 Hz offset and -162 dBc/Hz at 10 kHz offset. Maximum current consumption is 600 mA.

Oscillators Feature Summary

• Complies with Stratum 3 standards for high-precision timing applications
• Provides stable frequency output within specified temperature ranges
• Features low phase noise characteristics for signal integrity
• Utilizes a compact surface-mount package design

Oscillators Applications

• SDH/SONET telecommunications base stations
• High-reliability commercial applications
• Critical mission defense systems
• Test and measurement equipment
• Reference timing circuits for packet timing protocol 1588 satellite base stations

Oscillators Procurement Notes

Verify component authenticity through authorized Taitien distributors or direct manufacturer channels. Confirm datasheet revisions match specific production batches. Ensure storage conditions adhere to moisture sensitivity levels defined in the official documentation. Validate pin compatibility with target PCB footprints prior to assembly integration.

Oscillators Selection Notes

Select this model when Stratum 3 compliance and superior thermal stability are required. The 3.3V CMOS interface suits digital logic families. Consider the 600 mA current draw for power budget calculations. Evaluate phase noise requirements against the specified -92 dBc/Hz metric at 10 Hz offset for sensitive RF environments.

Oscillators Part Context

This oscillator belongs to the NK-N series of oven-controlled crystal oscillators manufactured by Taitien Electronics. The series offers various standard frequencies including 10 MHz and 20 MHz. The NK-N line is designed for applications demanding high frequency accuracy and long-term stability under varying environmental conditions.

Oscillators Replacement Considerations

NKEEELJNNY-10.000000 serves as a potential alternative within the same product family. Verify electrical parameter equivalence and pinout compatibility before substitution. Ensure the replacement part meets identical Stratum 3 certification requirements.
