Product Detailed Parameters
- Description：IC GATE OR SNGL 2-INP
- Series：*
- Mfr：onsemi
- Package：Tape & Reel (TR),Bulk
- Logic Type：-
- Number of Circuits：-
- Number of Inputs：-
- Features：-
- Voltage - Supply：-
- Current - Quiescent (Max)：-
- Current - Output High, Low：-
- Input Logic Level - Low：-
- Input Logic Level - High：-
- Max Propagation Delay @ V, Max CL：-
- Operating Temperature：-
- Mounting Type：-
- Supplier Device Package：-
- Package / Case：-
- Grade：-
- Qualification：-
Download product information
Overview

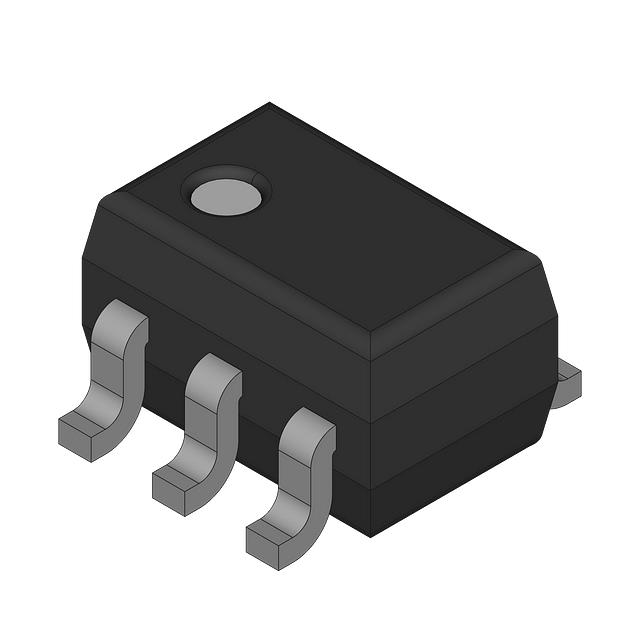

The NL17SZ32DFT2GH is a single 2-input OR gate from onsemi's NL series, designed for low-voltage digital applications. It operates within a wide supply voltage range of 1.65 V to 5.5 V and features a propagation delay of 2.4 ns at 3.0 V with 15 pF load. The device provides high drive capability with ±32 mA output currents and maintains low power consumption with a maximum ICC of 0.5 μA. It is housed in an SC-88A (SC-70-5) package and supports an operating temperature range from -55 °C to +125 °C.
Feature Summary
- Single 2-input OR logic function
- Wide operating voltage range from 1.65 V to 5.5 V
- High-speed performance with 2.4 ns typical propagation delay
- Low power dissipation with minimal quiescent current
Applications
- Portable consumer electronics requiring low voltage operation
- Battery-powered devices needing extended battery life
- Automotive infotainment and control systems
- Industrial equipment with wide temperature requirements
Procurement Notes
Verify the specific suffix 'GH' against the manufacturer's official datasheet to confirm packaging and tape/reel specifications. Ensure the component meets RoHS compliance requirements if mandated by your design standards. Cross-reference the SC-88A package dimensions with your PCB footprint library to guarantee mechanical compatibility during assembly.
Selection Notes
Select this component when a single OR gate is required in space-constrained designs. It is suitable for systems operating between 1.65 V and 5.5 V where low power consumption is critical. Consider its 2.4 ns speed for moderate-frequency digital signals. Verify that the SC-88A package fits your available board real estate and manufacturing capabilities.
Part Context
This part belongs to onsemi's NL series of low-voltage logic gates. The series is characterized by high speed and low power consumption, making it ideal for modern portable and automotive applications. The NL17SZ32 specifically implements a single 2-input OR function, providing a compact solution for basic logic operations in complex digital circuits.
Replacement Considerations
The NL17SZ32DFT2G is a comparable variant within the same family. Verify pinout compatibility and electrical parameters before substitution. Ensure the alternative part meets the same voltage and temperature specifications required by your application.
