- Description：IC SWITCH SPDT X 2 13OHM 12DFN
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Switch Circuit：SPDT
- Multiplexer/Demultiplexer Circuit：2:01
- On-State Resistance (Max)：13Ohm
- Channel-to-Channel Matching (ΔRon)：150mOhm
- Voltage - Supply, Single (V+)：1.65V ~ 5.5V
- Voltage - Supply, Dual (V±)：-
- Switch Time (Ton, Toff) (Max)：5.2ns, 3.5ns
- -3db Bandwidth：250MHz
- Charge Injection：7pC
- Channel Capacitance (CS(off), CD(off))：2.3pF
- Current - Leakage (IS(off)) (Max)：100nA
- Crosstalk：-54dB @ 10MHz
- Operating Temperature：-55°C ~ 125°C (TA)
- Mounting Type：Surface Mount
- Package / Case：12-WFDFN Exposed Pad
- Supplier Device Package：12-DFN (3x1)
- Number of Circuits：2
- Grade：-
- Qualification：-
Download product information
Overview

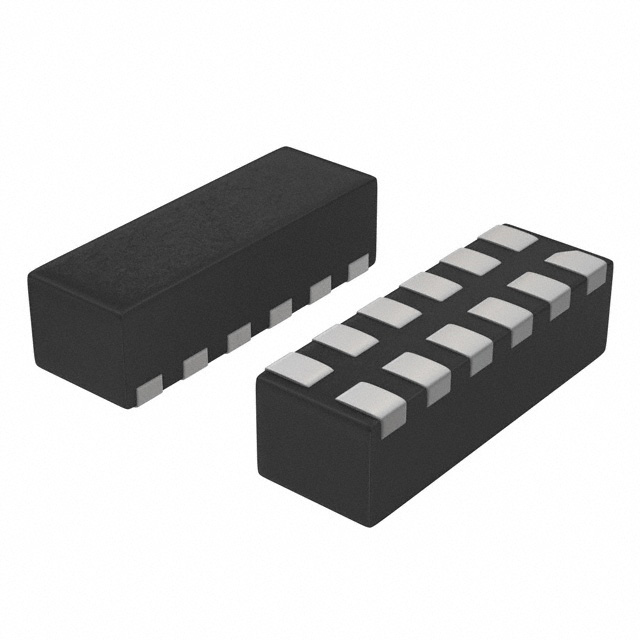

The NLAS3158MNR2G is a low-voltage analog switch manufactured by onsemi, designed for signal routing in portable and battery-powered applications. It operates within a supply voltage range of 1.65 V to 5.5 V, ensuring compatibility with modern low-power systems. The device features a compact DFN package with dimensions of 3 x 1 x 0.85 mm and utilizes a 12-pin configuration for surface mount installation. It supports an extended industrial temperature range from -55 °C to +125 °C, providing reliable performance in demanding environments while maintaining low power consumption characteristics.
Feature Summary
- Supports low-voltage operation suitable for portable electronics
- Compact surface-mount packaging for space-constrained designs
- Extended temperature range for industrial reliability
Applications
- Portable consumer electronics
- Battery-powered devices
- Signal routing in mobile handsets
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm pinout, package variant, and environmental compliance status. Ensure the component meets the required RoHS directives for your target market. Cross-reference the datasheet revision date to confirm current manufacturing status and any potential design changes that may affect integration.
Selection Notes
Select this component when low supply voltage operation between 1.65 V and 5.5 V is required. Consider the 12-pin DFN footprint for board space limitations. Verify thermal requirements against the -55 °C to +125 °C operating range. Compare on-resistance and leakage specifications in the official datasheet against system signal integrity needs before finalizing the design.
Part Context
This part belongs to onsemi's NLAS series of low-voltage analog switches. The series focuses on high-performance signal switching for portable applications. The MNR2G suffix typically indicates a specific tape-and-reel packaging format and lead finish compliant with standard environmental regulations. It serves as a solution for managing multiple signal paths in compact electronic devices.
Replacement Considerations
Consult the official onsemi cross-reference guide for verified alternatives. Check pin-to-pin compatibility and electrical parameter equivalence before substitution. Generic equivalents may not match the specific voltage or temperature ratings.
