Product Detailed Parameters
- Description：SPDT, 1 FUNC, 1 CHANNEL, PDSO6
- Series：*
- Mfr：onsemi
- Package：Bulk
- Switch Circuit：-
- Multiplexer/Demultiplexer Circuit：-
- On-State Resistance (Max)：-
- Channel-to-Channel Matching (ΔRon)：-
- Voltage - Supply, Single (V+)：-
- Voltage - Supply, Dual (V±)：-
- Switch Time (Ton, Toff) (Max)：-
- -3db Bandwidth：-
- Charge Injection：-
- Channel Capacitance (CS(off), CD(off))：-
- Current - Leakage (IS(off)) (Max)：-
- Crosstalk：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Number of Circuits：-
- Grade：-
- Qualification：-
Download product information
Overview

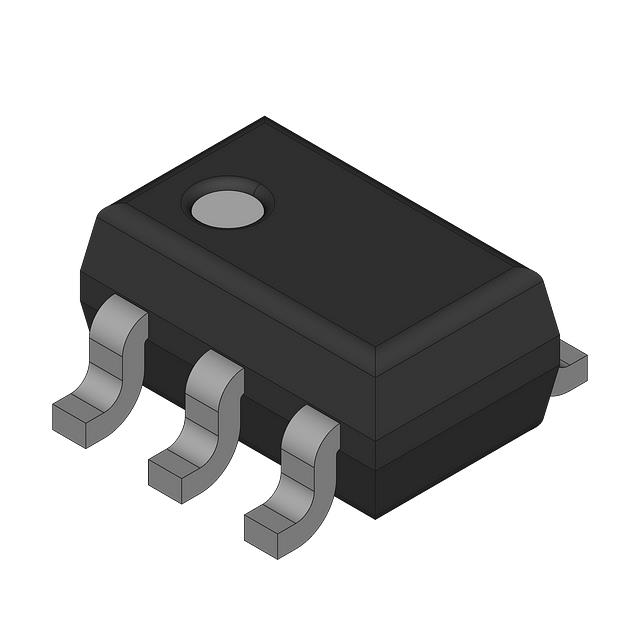

The NLAS9041DFT2G is a single-pole double-throw (SPDT) analog switch manufactured by onsemi. It features one functional channel with six pins in an SC-88 surface-mount package. The device supports a supply voltage range from 1.65 V to 5.5 V and operates within a temperature range of -55 °C to +125 °C. Key electrical specifications include a maximum low-level output current of 32 mA and a maximum high-level output current of -32 mA. Propagation delay is specified at 14.4 ns under maximum load conditions, ensuring reliable signal routing for digital and analog applications.
Feature Summary
- Single-channel SPDT configuration for flexible signal path management
- Schmitt-trigger inputs provide noise immunity and clean switching transitions
- Wide operating voltage range supports diverse logic families
- High thermal stability ensures reliability across extended industrial temperatures
Applications
- Portable equipment requiring efficient power management
- Signal routing in consumer electronics
- Data acquisition systems needing precise channel selection
- Industrial control interfaces for signal isolation
Procurement Notes
Verify the complete part number including the suffix '2G' to ensure compliance with RoHS and halogen-free standards. Confirm that the SC-88 package dimensions align with your PCB footprint requirements. Check datasheet specifications for input threshold voltages to ensure compatibility with your system's logic levels. Validate operating temperature ranges against your environmental constraints before finalizing procurement decisions.
Selection Notes
Select this component when a compact SPDT switch is required for low-voltage digital or analog signals. The Schmitt-trigger input feature makes it suitable for noisy environments where signal integrity is critical. Consider the 1.65 V minimum supply voltage for battery-powered designs. Ensure the 32 mA drive capability meets the load requirements of the connected circuitry without exceeding absolute maximum ratings.
Part Context
This device belongs to onsemi's NL series of logic multifunction converters and analog switches. It complements other small-signal switching solutions designed for space-constrained applications. The SC-88 package allows for high-density board layouts compared to traditional DIP packages. It serves as a cost-effective alternative for signal multiplexing in modern electronic designs requiring minimal footprint.
Replacement Considerations
Direct substitutes may include other SPDT analog switches from onsemi with similar pin counts and voltage ranges. Verify equivalent propagation delay and current drive capabilities when cross-referencing. Ensure replacement parts maintain the same SC-88 package dimensions for mechanical compatibility. Check for identical input protection characteristics to preserve system reliability.
