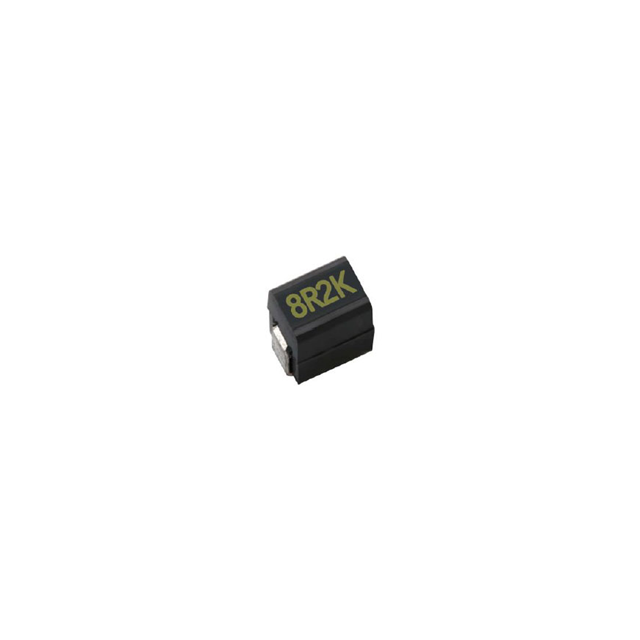

NLV08JT68N is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Viking Tech. Its product description is FIXED IND 68NH 320MA 650MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for NLV08JT68N
- Description：FIXED IND 68NH 320MA 650MOHM SMD
- Series：NLV
- Mfr：Viking Tech
- Package：Tape & Reel (TR)
- Type：Drum Core, Wirewound
- Material - Core：Ferrite
- Inductance：68 nH
- Tolerance：±5%
- Current Rating (Amps)：320 mA
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：650mOhm Max
- Q @ Freq：20 @ 100MHz
- Frequency - Self Resonant：1.05GHz
- Ratings：-
- Operating Temperature：-40°C ~ 105°C
- Inductance Frequency - Test：100 MHz
- Mounting Type：Surface Mount
- Package / Case：1008 (2520 Metric)
- Supplier Device Package：1008
- Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max)：0.075" (1.90mm)
- Features：-
Fixed Inductors datasheet and documents for NLV08JT68N
Fixed Inductors Overview
The NLV08JT68N is a fixed wirewound inductor manufactured by Viking Tech Corporation. It features an unshielded drum core design and utilizes a surface-mount 1008 (2520 Metric) package configuration. The component provides an inductance value of 68 nH with a tolerance of ±5%. It supports a maximum current rating of 320 mA and exhibits a maximum DC resistance of 650 mOhm.
Fixed Inductors Feature Summary
- Unshielded drum core construction for wirewound applications
- Surface-mount 1008 package format
- Fixed inductance specification
Fixed Inductors Applications
- RF circuit filtering
- General electronic device signal conditioning
- Automotive electronics integration
Fixed Inductors Procurement Notes
Verify the specific manufacturer datasheet to confirm compliance with RoHS directives and AEC-Q200 automotive standards if required for the application. Ensure that the selected component matches the exact 68 nH inductance and 320 mA current rating specifications necessary for the target circuit design requirements.
Fixed Inductors Selection Notes
Select this component when a low-inductance, unshielded wirewound solution is required for high-frequency applications. Consider the 1008 footprint constraints and the 650 mOhm DC resistance limit. Evaluate the ±5% tolerance against the circuit's sensitivity requirements to ensure stable performance under varying conditions.
Fixed Inductors Part Context
This part belongs to the Viking Tech NLV series of fixed inductors. The series includes various wirewound options designed for surface-mount technology. Viking Tech Corporation specializes in precision passive components, including resistors and inductors, serving industries such as automotive and consumer electronics with high-quality manufacturing standards.
Fixed Inductors Replacement Considerations
Consult official Viking Tech documentation or authorized distributors for confirmed substitute part numbers within the same series or equivalent specifications from other manufacturers.
