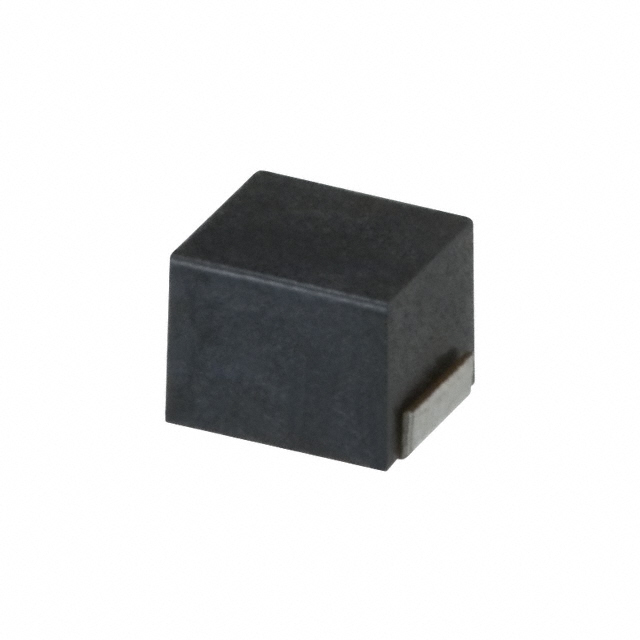

NLV25T-012J-PF is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is FIXED IND 12NH 500MA 270MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for NLV25T-012J-PF
- Description：FIXED IND 12NH 500MA 270MOHM SMD
- Series：NLV-PF
- Mfr：TDK Corporation
- Package：Tape & Reel (TR)
- Type：Drum Core, Wirewound
- Material - Core：Ferrite
- Inductance：12 nH
- Tolerance：±5%
- Current Rating (Amps)：500 mA
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：270mOhm Max
- Q @ Freq：15 @ 100MHz
- Frequency - Self Resonant：2.05GHz
- Ratings：-
- Operating Temperature：-40°C ~ 105°C
- Inductance Frequency - Test：100 MHz
- Mounting Type：Surface Mount
- Package / Case：1008 (2520 Metric)
- Supplier Device Package：1008 (2520 Metric)
- Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max)：0.075" (1.90mm)
- Features：-
Fixed Inductors datasheet and documents for NLV25T-012J-PF
Fixed Inductors Overview
The NLV25T-012J-PF is a fixed surface-mount inductor from TDK Corporation, designed for high-frequency applications. It features an unshielded wirewound construction with a ferrite core and drum type winding. The component provides an inductance of 12 nH with a tolerance of ±5%. It supports a maximum DC current of 500 mA and has a maximum DC resistance of 270 mΩ. The device operates within a temperature range of -40°C to +105°C and utilizes the standard 1008 (2520 metric) package dimensions.
Fixed Inductors Feature Summary
- Unshielded wirewound design utilizing ferrite core technology
- High self-resonant frequency capability for RF signal integrity
- Compact 1008 surface-mount footprint for space-constrained layouts
Fixed Inductors Applications
- RF circuit impedance matching networks
- DC-to-DC converter input/output filtering
- High-frequency signal line chokes
Fixed Inductors Procurement Notes
Verify component authenticity through authorized TDK distributors or certified partners. Confirm RoHS3 compliance status prior to integration. Review official product change notices for potential obsolescence updates. Ensure storage conditions adhere to moisture sensitivity level requirements during assembly processing.
Fixed Inductors Selection Notes
Select this component for designs requiring low inductance values in compact SMD packages. Evaluate thermal performance against the 500 mA current rating. Consider the unshielded nature for proximity to sensitive components. Verify PCB land pattern compatibility with the 1008 package dimensions.
Fixed Inductors Part Context
This part belongs to the NLV-PF series of commercial-grade RF inductors. The series offers various inductance options within the 1008 package. It targets general electronics and industrial applications requiring reliable passive components.
Fixed Inductors Replacement Considerations
Consult official TDK documentation for verified substitute part numbers. Cross-reference electrical parameters including inductance, current rating, and package size before substitution.
