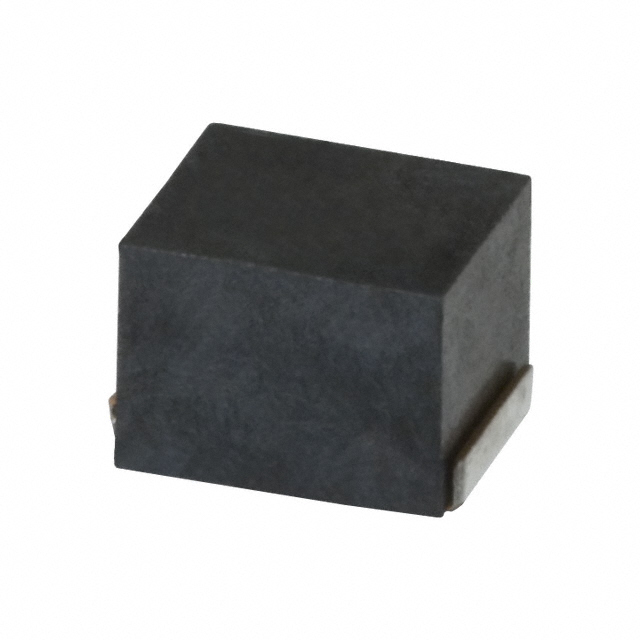

NLV32T-R12J-EF

$0.15

Description：FIXED IND 120NH 450MA 220MOHM SM
Series：NLV-EF
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c2c9fd9c09e5 Category: Fixed Inductors Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NLV32T-R12J-EF is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is FIXED IND 120NH 450MA 220MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for NLV32T-R12J-EF

Description：FIXED IND 120NH 450MA 220MOHM SM
Series：NLV-EF
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：120 nH
Tolerance：±5%
Current Rating (Amps)：450 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：220mOhm Max
Q @ Freq：30 @ 25.2MHz
Frequency - Self Resonant：500MHz
Ratings：-
Operating Temperature：-40°C ~ 105°C
Inductance Frequency - Test：25.2 MHz
Mounting Type：Surface Mount
Package / Case：1210 (3225 Metric)
Supplier Device Package：1210
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)：0.094" (2.40mm)
Features：-

Fixed Inductors datasheet and documents for NLV32T-R12J-EF

NLV32T-R12J-EF

Fixed Inductors Overview

The NLV32T-R12J-EF is an unshielded surface-mount radio frequency inductor from the TDK NLV32-EF series. It utilizes a wound ferrite core construction to achieve a nominal inductance of 120 nH with a tolerance of ±5%. The component supports a maximum DC current of 450 mA and exhibits a maximum DC resistance of 220 mOhms. It operates within a temperature range of -40°C to +105°C, featuring a minimum Q factor of 30 at 25.2 MHz and a self-resonant frequency of 500 MHz. The physical dimensions are 3.2 mm x 2.5 mm x 2.2 mm.

Fixed Inductors Feature Summary

Unshielded wirewound ferrite core design for RF applications
Standard terminal configuration for PCB mounting
Commercial grade operational temperature range

Fixed Inductors Applications

Commercial electronic circuits
RF signal processing
General-purpose SMD inductance requirements

Fixed Inductors Procurement Notes

Verify the specific suffix EF against project requirements to ensure compatibility with commercial-grade specifications. Confirm that the unshielded topology aligns with electromagnetic interference constraints. Cross-reference the manufacturer datasheet for precise handling and soldering parameters before integration into the final assembly process.

Fixed Inductors Selection Notes

Select this component when a 120 nH inductance value is required for commercial-grade RF applications. The choice depends on the need for a 450 mA current rating and a 220 mOhm resistance limit within the standard 1210 footprint. Ensure the unshielded nature does not conflict with nearby sensitive circuitry or strict EMI regulations.

Fixed Inductors Part Context

This part belongs to the TDK NLV32-EF series of fixed inductors. It shares the same electrical characteristics as the NLV32T-R12J-PF but differs in packaging or lifecycle status. The NLV32T-1R2J-EFD variant exists within the broader family but features different inductance values and automotive-grade certification.
