NLW15-100

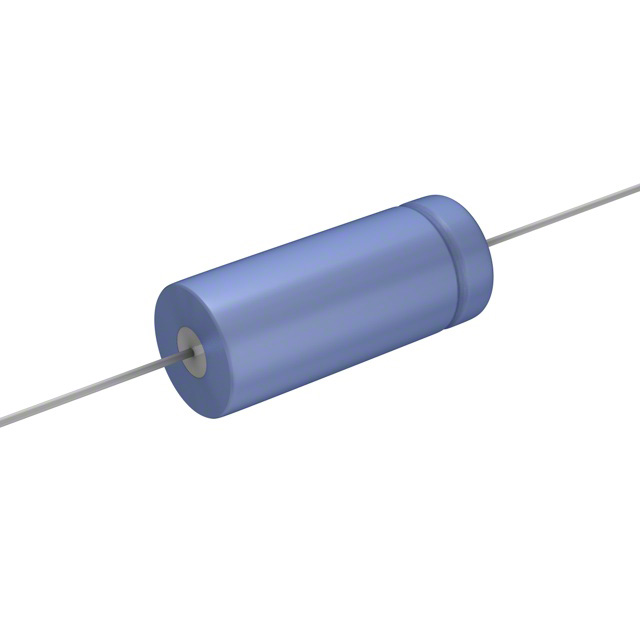

NLW15-100 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Cornell Dubilier Knowles. Its product description is CAP ALUM 15UF 100V AXIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for NLW15-100

• Description：CAP ALUM 15UF 100V AXIAL TH
• Series：NLW
• Mfr：Cornell Dubilier Knowles
• Package：Bulk
• Capacitance：15 µF
• Tolerance：-10%, +75%
• Voltage - Rated：100 V
• ESR (Equivalent Series Resistance)：13.5Ohm @ 120Hz
• Lifetime @ Temp.：1000 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：104 mA @ 120 Hz
• Ripple Current @ High Frequency：124.8 mA @ 10 kHz
• Lead Spacing：-
• Size / Dimension：0.400" Dia x 0.940" L (10.16mm x 23.88mm)
• Height - Seated (Max)：-
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Axial, Can
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for NLW15-100
