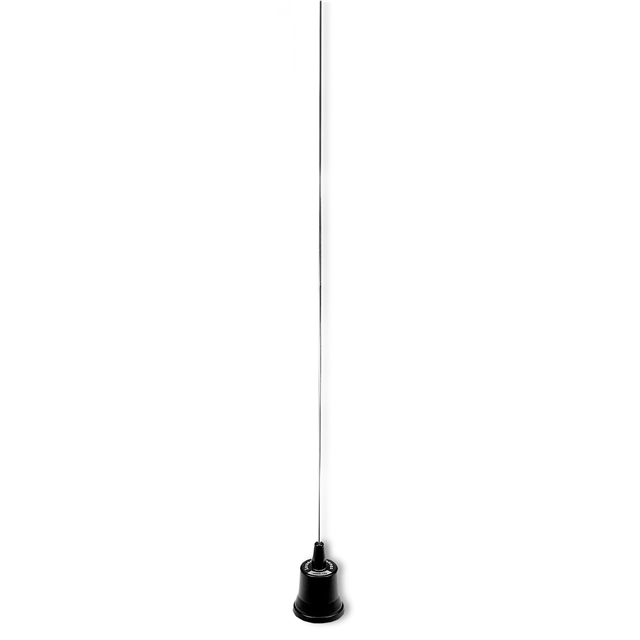

NMO150C is listed in the Antennas RF range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is COIL / WHIP, 3 DB, 144 - 174 MHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for NMO150C
- Description：COIL / WHIP, 3 DB, 144 - 174 MHZ
- Series：-
- Mfr：Pulse Electronics
- Package：Bag
- RF Family/Standard：-
- Frequency Group：VHF (f < 300MHz)
- Frequency (Center/Band)：159MHz
- Frequency Range：144MHz ~ 174MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：5.14dBi
- Features：-
- Termination：NMO
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Magnetic
- Height (Max)：51.496" (130.80cm)
- Applications：-
- Power - Max：200 W
Antennas RF datasheet and documents for NMO150C
Antennas RF Overview
The NMO150C is a passive RF antenna manufactured by Pulse Electronics Corporation. It features a straight whip design with an NMO magnetic base for mounting. The component operates within the 144 MHz to 174 MHz frequency range, suitable for VHF applications. It provides a gain of 3 dB and utilizes an NMO connector interface.
Antennas RF Feature Summary
- Straight whip antenna configuration
- NMO magnetic base mounting system
- Passive RF operation in VHF band
Antennas RF Applications
- VHF radio communication systems
- Mobile vehicle installations
- ISM band operations
Antennas RF Procurement Notes
Verify the specific revision status and RoHS compliance details directly with the manufacturer or authorized distributors, as product specifications may be subject to change. Confirm that the NMO magnetic base compatibility matches the intended installation surface requirements before finalizing procurement decisions.
Antennas RF Selection Notes
Select this model when a fixed-gain VHF antenna with magnetic mounting is required. Ensure the operating environment supports the specified frequency range and that the mechanical constraints accommodate the whip form factor and magnetic base dimensions.
Antennas RF Part Context
This part belongs to the Pulse Electronics RF and Wireless antenna portfolio. It is categorized under ISM antennas designed for VHF frequencies. The product line focuses on passive antenna solutions for mobile and fixed communication infrastructure.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative VHF whip antennas with NMO bases based on gain and frequency matching if direct replacement is unavailable.
