NNENCLJNNY-10.000000

Oscillators Overview

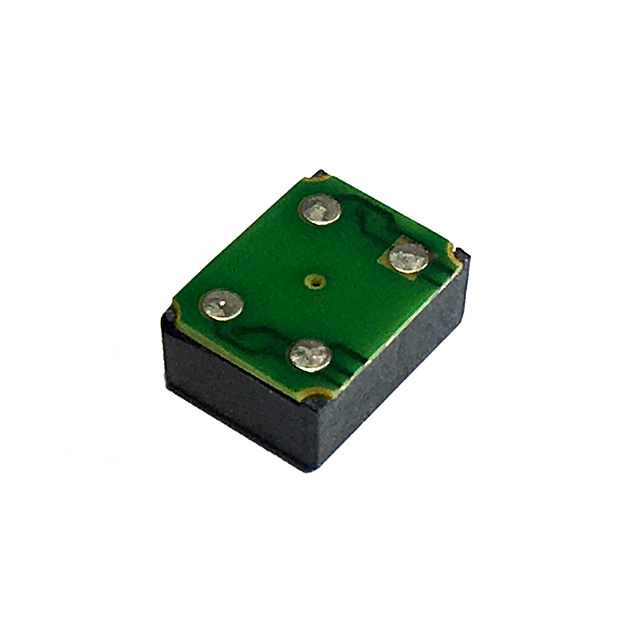

The Taitien NNENCLJNNY-10.000000 is a 10 MHz Ovened Crystal Oscillator (OCXO) featuring CMOS output logic. It operates on a single 3.3V supply voltage and utilizes a 4-SMD, No Lead surface-mount package. The component provides high-frequency stability suitable for precision timing applications requiring low phase noise and robust environmental performance.

Oscillators Feature Summary

• High-stability OCXO design with oven-controlled crystal element
• CMOS output interface for direct digital logic integration
• Compact surface-mount form factor for automated assembly

Oscillators Applications

• Telecommunications base station synchronization
• Precision test and measurement instrumentation
• Aerospace navigation systems

Oscillators Procurement Notes

Verify the specific datasheet revision and pinout configuration before integration. Confirm that the 3.3V CMOS output levels match the receiving circuit's input thresholds. Ensure thermal management requirements for the ovenized operation are addressed in the PCB layout to maintain specified frequency stability across the operating temperature range.

Oscillators Selection Notes

Select this model when ultra-high stability is required over wide temperature variations. The CMOS output simplifies interfacing compared to LVDS or sine-wave outputs. Consider the power consumption profile of the ovenized heater against available board space and thermal dissipation capabilities.

Oscillators Part Context

This oscillator belongs to Taitien’s OCXO portfolio, which supports aerospace and defense applications. The manufacturer specializes in quartz frequency control products, offering various packaging options including SMD and DIP formats for different mounting and thermal requirements.

Oscillators Replacement Considerations

The Raltron OX4170A-D3-2-10.000-3.3 is listed as a substitute part number. Verify electrical compatibility and mechanical footprint alignment before swapping components.
