NP062AN00A

Overview

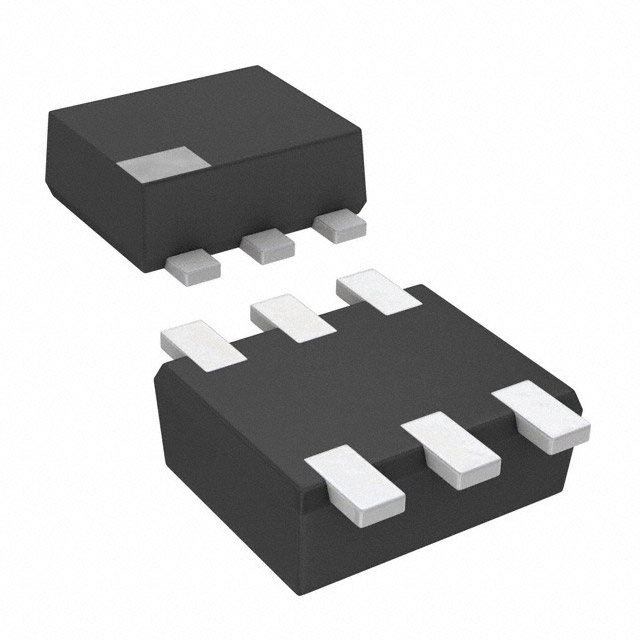

The NP062AN00A is a dual NPN pre-biased transistor array manufactured by Panasonic Industry. It integrates two NPN transistors with built-in bias resistors in an SSS Mini 6-F1 surface-mount package. Key electrical parameters include a collector-emitter breakdown voltage of 50V, a maximum collector current of 80mA, and a transition frequency of 150MHz. The device features a base resistor (R1) of 4.7 kΩ and an emitter resistor (R2) of 47 kΩ. It operates within a power dissipation limit of 125mW and offers a DC current gain of at least 80 at 5mA and 10V.

Feature Summary

• Integrated dual NPN configuration with fixed bias resistors simplifies circuit design by reducing component count.
• Compact SSS Mini 6-F1 surface-mount package enables high-density PCB layout for portable electronics.
• High-frequency performance with a 150MHz transition frequency suitable for signal processing applications.

Applications

• Signal switching circuits in portable electronic devices
• Driver stages for low-power logic interfaces
• Biasing networks in wearable technology components

Procurement Notes

Verify part authenticity through authorized Panasonic Industry distributors due to the component's discontinued status. Confirm that the SSS Mini 6-F1 package dimensions match the target PCB footprint. Check for moisture sensitivity level 1 compliance if reflow soldering is required. Ensure the specific suffix indicates the correct tape-and-reel packaging format for automated assembly processes.

Selection Notes

Select this component when a compact dual NPN solution with integrated biasing is required. The 50V rating and 80mA current capacity define its operational limits. Consider the 125mW power dissipation constraint for thermal management. The specific resistor values of 4.7kΩ and 47kΩ are fixed; verify they align with the target circuit's biasing requirements before substitution.

Part Context

The NP062AN00A belongs to the NP062AN series of pre-biased transistor arrays from Panasonic Industry. This series is designed for applications requiring space-saving solutions with integrated biasing networks. The component utilizes silicon planar technology and is housed in a lead-free, halogen-free package compliant with environmental standards.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative dual NPN pre-biased arrays by matching pin configurations, electrical ratings, and package dimensions such as the SSS Mini 6-F1 form factor.
