NPJ50AT6G10W-3dB

Overview

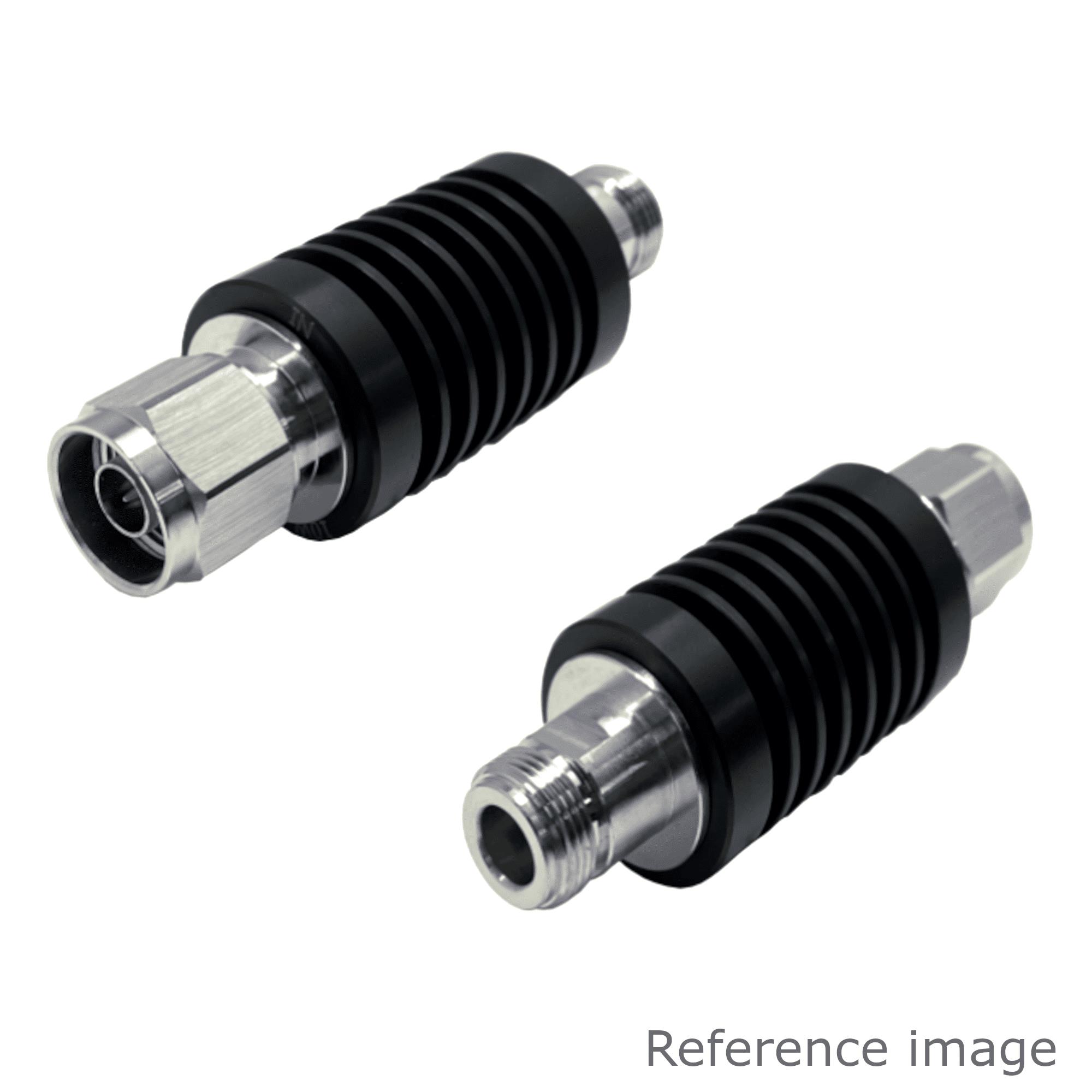

The NPJ50AT6G10W-3dB is an N-type coaxial fixed attenuator manufactured by TYCLON. It provides a nominal attenuation of 3±0.59 dB with a characteristic impedance of 50 Ohms. The device operates within a frequency range of DC to 6 GHz and supports a maximum power rating of 10 Watts. Voltage standing wave ratio (VSWR) specifications are 1.2 or less for the 0–3 GHz band and 1.3 or less for the 3–6 GHz band. The unit functions reliably across a temperature range of -45°C to +85°C.

Feature Summary

• Fixed 3 dB attenuation in a robust N-type coaxial module
• High power handling capability up to 10 Watts
• Wideband operation from DC to 6 GHz
• Low VSWR ensuring efficient signal transmission

Applications

• RF signal level adjustment in wireless communication systems
• Impedance matching and protection in test and measurement equipment
• Signal conditioning in IoT device infrastructure
• Data infrastructure component integration

Procurement Notes

Verify the specific model suffix against official TYCLON documentation to confirm exact attenuation values and connector gender. Ensure that the required power rating and frequency range align with system specifications before procurement. Cross-reference datasheet parameters for VSWR and temperature limits to guarantee compatibility with operational environments.

Selection Notes

Select this component when a precise 3 dB reduction is required in high-power RF applications. Consider the N-type interface for secure connections in industrial settings. Evaluate the 10W power capacity against peak signal levels. Confirm that the 6 GHz bandwidth covers all intended operating frequencies without significant insertion loss variation.

Part Context

This part belongs to TYCLON's NPJ series of N-coaxial attenuators, designed for high-frequency stability. The series typically includes variants with different attenuation values and power ratings. The NPJ50AT6G10W-3dB specifically targets applications requiring moderate signal reduction with high power tolerance in the UHF and microwave bands.

Replacement Considerations

Compatible substitutes include other N-type 50 Ohm fixed attenuators with similar 3 dB attenuation and 10W power ratings. Verify mechanical dimensions and connector gender compatibility. Ensure replacement parts meet the same VSWR and frequency response standards as specified in the original datasheet.

FAQ

What is the maximum power rating of the NPJ50AT6G10W-3dB?

The maximum power rating is 10 Watts.

What is the VSWR specification for frequencies between 3 GHz and 6 GHz?

The VSWR is 1.3 or less in the 3–6 GHz frequency range.
