NPJ50AT6G40W-3dB

Overview

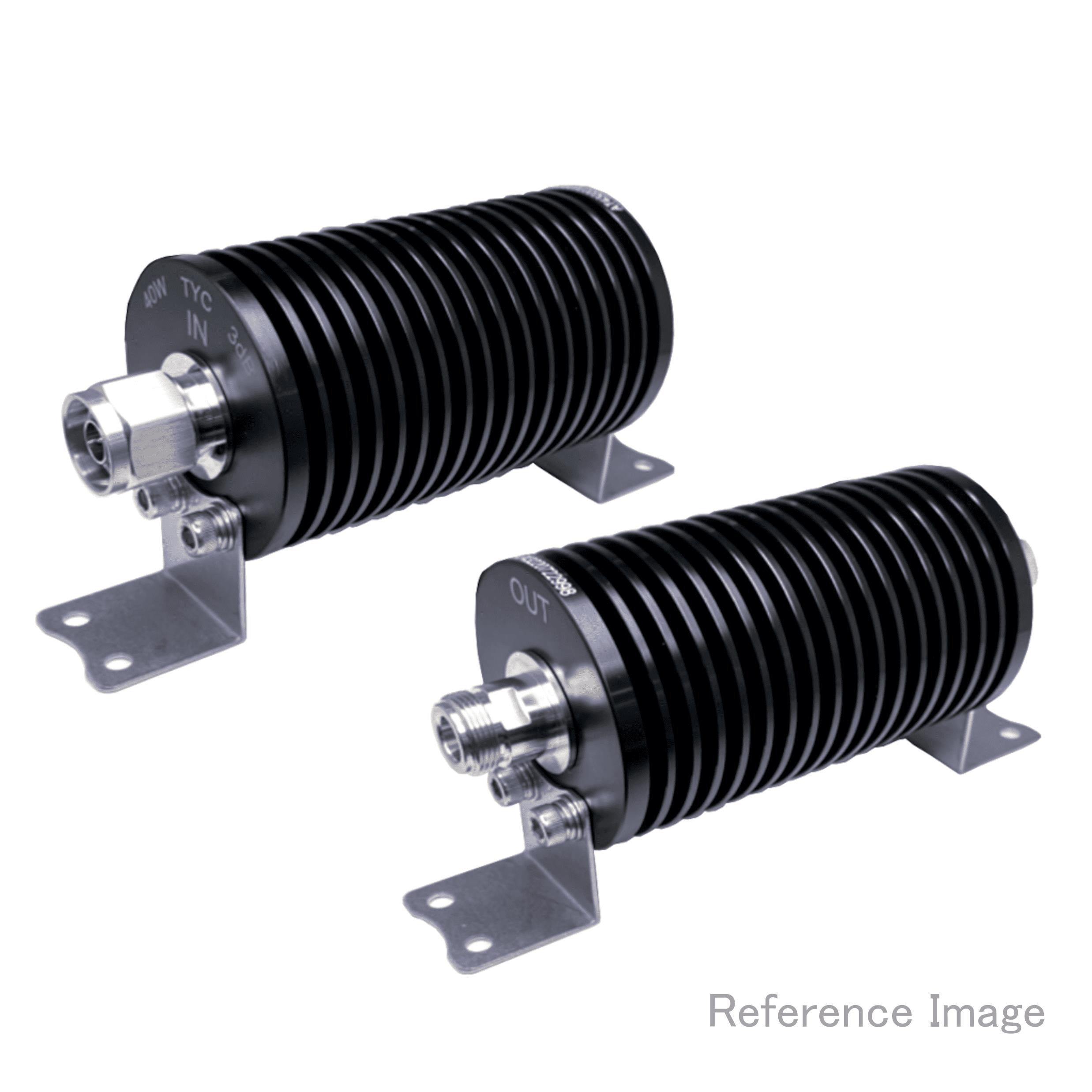

The TYCLON NPJ50AT6G40W-3dB is a fixed attenuator coaxial connector designed for high-frequency applications. It features an N-type plug configuration with a characteristic impedance of 50 Ohms. The component operates within a frequency range up to 6 GHz, supporting DC to 6 GHz signal transmission. Voltage standing wave ratio (VSWR) specifications are maintained at 1.2 or lower from DC to 3 GHz, and 1.3 or lower from 3 to 6 GHz. The device functions reliably within an operating temperature range of -45°C to +85°C.

Feature Summary

• Provides precise signal attenuation in RF circuits using a fixed design.
• Ensures stable signal integrity through controlled voltage standing wave ratio performance across specified frequency bands.
• Facilitates reliable connection in high-frequency systems via standard N-type plug interface geometry.

Applications

• RF signal conditioning in wireless communication infrastructure
• Test and measurement equipment requiring precise attenuation
• IoT device signal path management

Procurement Notes

Verify the specific manufacturer designation, as sources indicate Tyclon may be associated with Tokune manufacturing. Confirm the exact attenuation value matches system requirements, as the model suffix suggests a specific dB rating. Ensure the N-type plug configuration aligns with mating jack connectors in the target assembly. Check RoHS compliance documentation if environmental regulations apply to the deployment region.

Selection Notes

Select this component when a fixed attenuation value is required in a 50 Ohm system operating up to 6 GHz. The N-type interface is suitable for applications needing robust mechanical connections. Consider the VSWR limits for sensitive signal paths where reflection loss must be minimized. Verify thermal stability requirements against the -45°C to +85°C operational range.

Part Context

This component belongs to the family of high-performance RF connectors engineered for next-generation wireless communications and data infrastructure. It serves as a passive element for signal level adjustment in coaxial transmission lines. The design supports integration into compact electronic assemblies requiring precise impedance matching and frequency-specific performance characteristics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Cross-reference with other N-type 50 Ohm fixed attenuators ensuring identical frequency range and VSWR specifications. Verify physical dimensions and mounting style compatibility before substitution.

FAQ

What is the maximum operating frequency?

The component supports operation up to 6 GHz.

What is the VSWR specification?

VSWR is 1.2 or lower from DC to 3 GHz, and 1.3 or lower from 3 to 6 GHz.
