NPS3102AGBJ

Overview

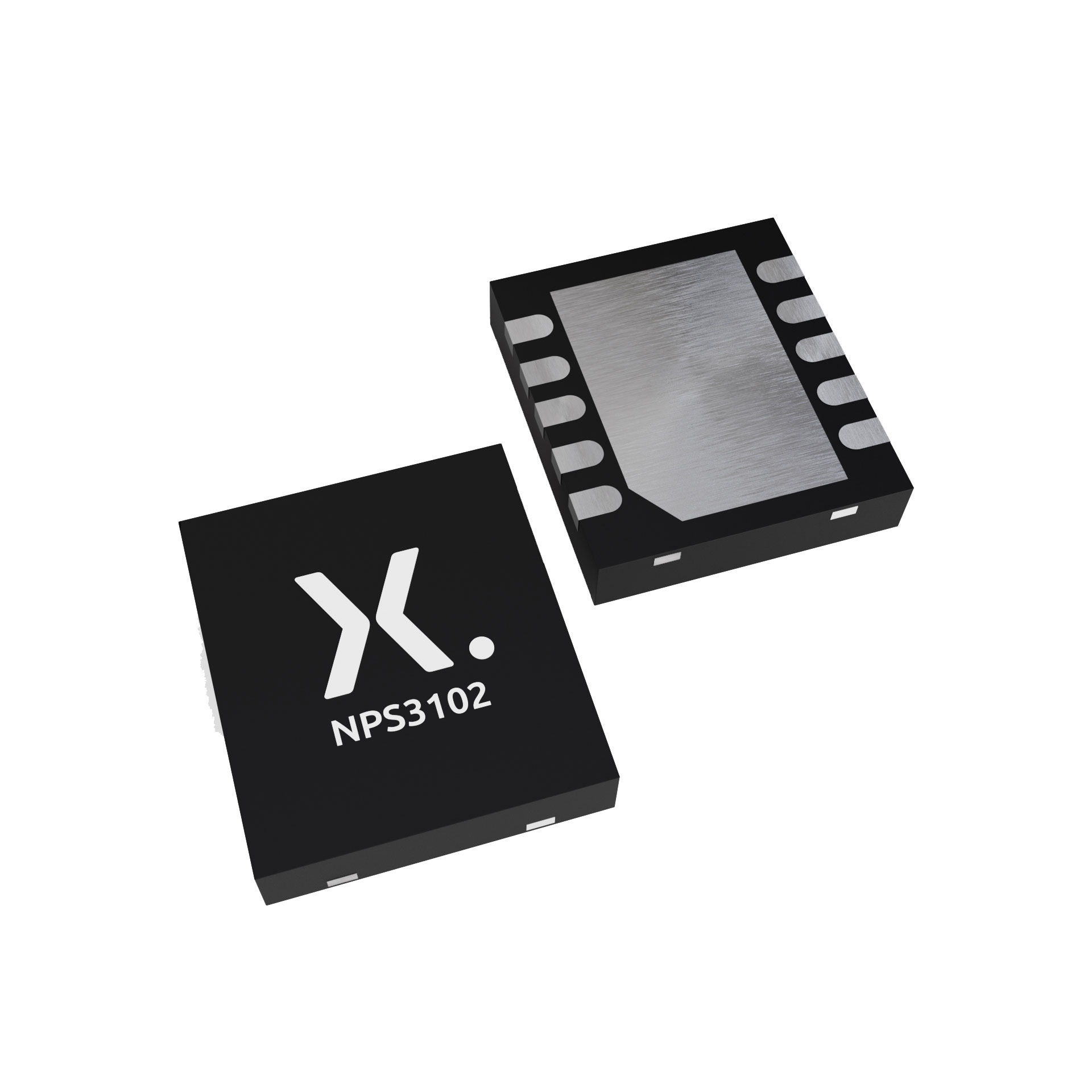

The NPS3102AGBJ is a resettable electronic fuse and power distribution IC manufactured by Nexperia. It operates within an input voltage range of 0.5 V to 5.5 V and supports a maximum continuous current of 2 A. The device features a typical on-resistance (RDS(on)) of 40 mΩ at 5.5 V, ensuring low conduction losses. It integrates adjustable soft-start functionality to limit inrush current during startup. The component provides comprehensive protection against overcurrent, overtemperature, and reverse voltage conditions. It is housed in a compact WDFN10 package.

Feature Summary

• Integrates resettable electronic fuse capabilities for power distribution
• Features adjustable soft-start to manage inrush current
• Provides active reverse voltage protection
• Includes fault indication via flag output

Applications

• USB port and hub protection
• Laptop and docking station power distribution
• Set-top box power management
• HDTV circuit protection

Procurement Notes

Verify the specific suffix 'GBJ' corresponds to the required tape-and-reel packaging configuration as defined in the official datasheet. Confirm that the WDFN10 footprint matches your PCB layout constraints. Ensure compliance with RoHS directives and check for automotive qualification status if deploying in vehicle electronics. Validate operating temperature ranges against your system environment requirements before finalizing procurement.

Selection Notes

Select this component when designing circuits requiring integrated load switching and fuse protection in a single package. It is suitable for applications needing precise current limiting and thermal shutdown without external discrete components. Consider the 40 mΩ on-resistance for efficiency calculations. Evaluate the need for adjustable soft-start timing based on downstream capacitor loads. Compare against standard MOSFET solutions to assess BOM cost reduction and board space savings.

Part Context

This part belongs to the NPS3102 series of power switch ICs from Nexperia. These devices are designed for high-efficiency power distribution in portable and industrial electronics. The series offers various configurations tailored for different voltage and current requirements. The NPS3102AGBJ specifically targets applications demanding robust protection and compact form factors.

Replacement Considerations

Consult the Nexperia product selector for alternative parts within the NPS3102 family or similar load switches. Verify pin compatibility and electrical specifications before substituting. No direct public substitute part numbers are confirmed for this specific variant.
