NR3010T3R3M

Fixed Inductors Overview

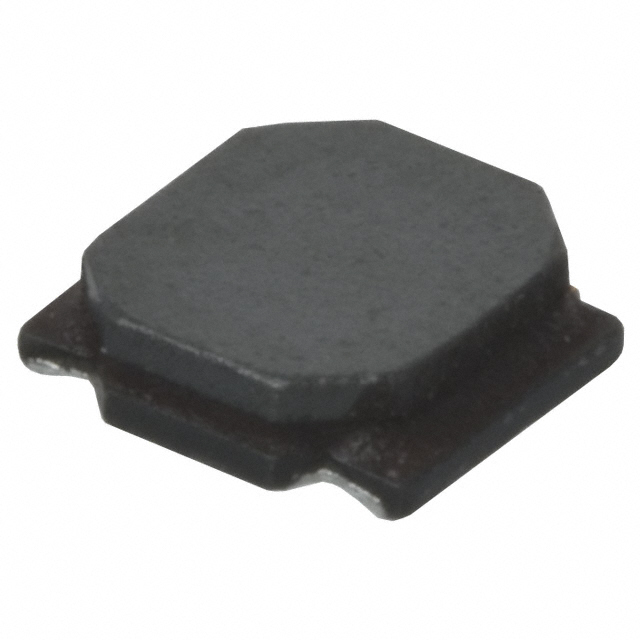

The NR3010T3R3M is a fixed surface-mount power inductor from the Taiyo Yuden NR series. It features a shielded drum core wirewound construction with a ferrite magnetic core. The component provides an inductance of 3.3 µH with a tolerance of ±20%. It has a maximum DC resistance of 888 mΩ and a rated current of 400 mA, with a saturation current (Isat) of 400 mA. The self-resonant frequency is 30 MHz at a test frequency of 100 kHz. Physical dimensions are 3.00mm x 3.00mm x 1.00mm. It operates within a temperature range of -25°C to 120°C.

Fixed Inductors Feature Summary

• Shielded drum core wirewound design minimizes electromagnetic interference.
• Compact 3.00mm x 3.00mm surface mount footprint for space-constrained layouts.
• High self-resonant frequency supports high-frequency switching applications.

Fixed Inductors Applications

• DC-DC converter input/output filtering
• Power supply output chokes
• EMI suppression circuits

Fixed Inductors Procurement Notes

Verify the specific ordering suffix and packaging configuration required for production integration. Confirm that the component status aligns with long-term availability requirements, as manufacturing changes may occur. Ensure the selected package type matches automated assembly equipment capabilities. Cross-reference the manufacturer's latest documentation for any recent product change notices or lifecycle updates before finalizing procurement plans.

Fixed Inductors Selection Notes

Select this component when a shielded inductor is required to reduce magnetic field leakage in dense PCB layouts. The 3.00mm square package offers a balance between current handling and size. Verify that the 400 mA rated current meets the circuit's continuous load requirements. Consider the 888 mΩ DCR impact on overall efficiency. Ensure the operating temperature range covers the system's environmental extremes.

Fixed Inductors Part Context

This part belongs to the NR series of SMD power inductors from Taiyo Yuden. The series utilizes a unique drum core structure combining wirewinding technology with shielding to achieve low impedance and high current performance. These components are designed for use in portable electronics and power management systems where size and EMI performance are critical constraints.

Fixed Inductors Replacement Considerations

Public confirmed substitute: LSXNE3030KKT3R3MN by Taiyo Yuden.
