NR3700-O

Overview

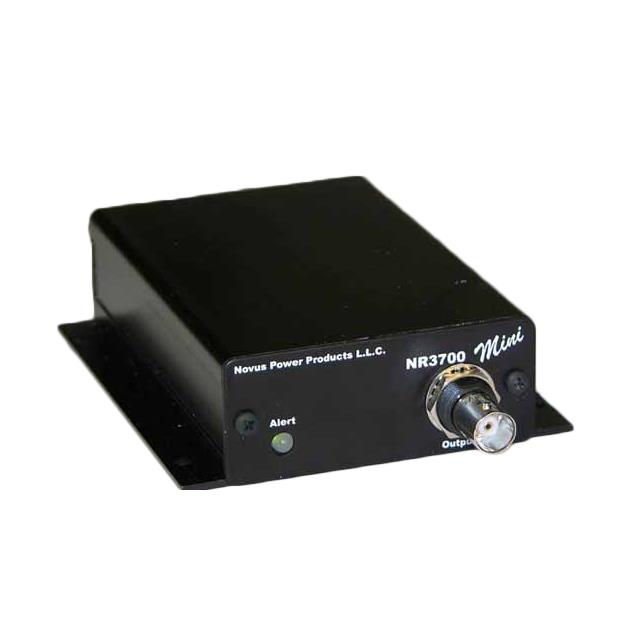

The NR3700-O is a single-channel oven-controlled crystal oscillator (OCXO) frequency reference module manufactured by Novus Power Products LLC. It operates at a nominal frequency of 10 MHz and provides precise timing synchronization for general-purpose applications. The unit supports standard output configurations including 1 Hz or Pulse Per Second (PPS). While nominally powered from 12 VDC, the device offers operational flexibility with a wide input voltage range spanning from -60 VDC to +60 VDC across three distinct power ranges.

Feature Summary

• Single-channel OCXO design for stable frequency generation
• Wide DC input voltage tolerance across multiple ranges
• Standard 10 MHz timing output capability

Applications

• General-purpose frequency synchronization systems
• Precision timing reference distribution
• Telecommunications infrastructure equipment

Procurement Notes

Verify the specific part number suffix against official Novus documentation to ensure correct configuration. Confirm that the required input voltage range aligns with the available power settings. Check for any specific environmental ratings or mounting requirements detailed in the manufacturer datasheet before finalizing procurement orders.

Selection Notes

Select this component when a single-channel 10 MHz reference is required with wide voltage input flexibility. Consider the NR3700-O/G variant if GNSS locking functionality is needed instead of free-running operation. Evaluate thermal management needs based on the OCXO heating element requirements inherent to oven-controlled designs.

Part Context

This model belongs to Novus Power Products' line of precision frequency and timing reference products. The brand specializes in high-stability oscillators and related equipment. The NR3700 series represents their standard offering for applications requiring reliable 10 MHz synchronization without complex external control loops.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult Novus Power Products directly for cross-reference information or functional equivalents within their current product portfolio.
