NR6045T6R3M

Fixed Inductors Overview

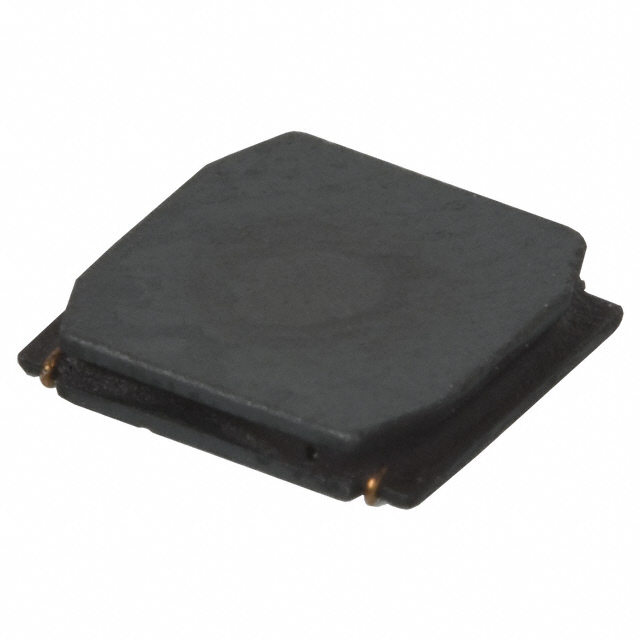

The NR6045T6R3M is a fixed power inductor from the Taiyo Yuden NR series, designed for surface mount applications. It features a semi-shielded wirewound construction with a ferrite core, offering an inductance of 6.3 µH at a test frequency of 100 kHz and a tolerance of ±20%. The component supports a rated current of 2.8 A and a saturation current of 3.8 A, with a maximum DC resistance of 49.4 mΩ. Operating within a temperature range of -25°C to +120°C, it has a self-resonant frequency of 15 MHz and measures 6.00 mm x 6.00 mm x 4.50 mm.

Fixed Inductors Feature Summary

• Semi-shielded wirewound design utilizing a ferrite core to minimize electromagnetic interference.
• High saturation current capability of 3.8 A for robust power handling.
• Low DC resistance of 49.4 mΩ to reduce power loss.
• Surface mount package suitable for automated PCB assembly.

Fixed Inductors Applications

• Power supply circuits
• DC-DC converter modules
• General electronic equipment filtering

Fixed Inductors Procurement Notes

Verify component status as this part is obsolete and no longer manufactured. Confirm availability of approved substitutes if production continuity is required. Ensure compliance with RoHS3 specifications and check moisture sensitivity level (MSL 1) before storage and reflow soldering processes.

Fixed Inductors Selection Notes

Select this component for applications requiring a 6.3 µH inductance with moderate current ratings. Consider the 15 MHz self-resonant frequency for high-frequency performance limits. Evaluate thermal requirements against the -25°C to +120°C operating range and ensure board space accommodates the 6.00 mm x 6.00 mm footprint.

Fixed Inductors Part Context

This inductor belongs to the NR series of SMD power inductors by Taiyo Yuden. The series is characterized by its compact size and reliability for various electronic applications. The NR6045T6R3M specifically utilizes a 6045 metric case size, balancing performance with space constraints in modern electronics.

Fixed Inductors Replacement Considerations

NR6045T2R3N

Fixed Inductors FAQ

What is the saturation current rating?

The saturation current (Isat) is 3.8 A.

Is the inductor shielded?

Yes, it features a semi-shielded construction.
