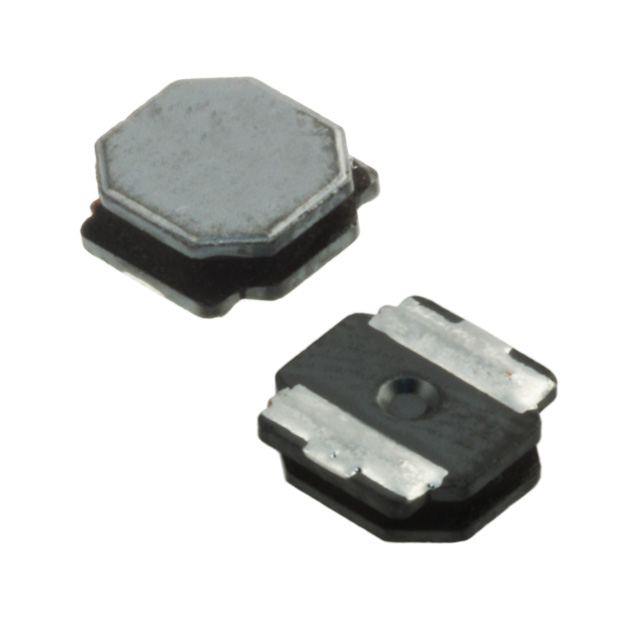

NRS5020T220MMGJV is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FIXED IND 22UH 1A 312 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for NRS5020T220MMGJV
- Description：FIXED IND 22UH 1A 312 MOHM SMD
- Series：NR, S Type
- Mfr：Taiyo Yuden
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Drum Core, Wirewound
- Material - Core：Ferrite
- Inductance：22 µH
- Tolerance：±20%
- Current Rating (Amps)：1:00 AM
- Current - Saturation (Isat)：900mA
- Shielding：Shielded
- DC Resistance (DCR)：312mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：17MHz
- Ratings：AEC-Q200
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.193" L x 0.193" W (4.90mm x 4.90mm)
- Height - Seated (Max)：0.079" (2.00mm)
- Features：-
Fixed Inductors datasheet and documents for NRS5020T220MMGJV
Fixed Inductors Overview
The NRS5020T220MMGJV is a surface-mount power inductor from Taiyo Yuden, designed for high-current applications. It features a ferrite core with wirewound construction and semi-shielded design to minimize electromagnetic interference. The component offers an inductance of 22 µH with a tolerance of ±20%. Key electrical parameters include a maximum DC current rating of 1 A, a saturation current of 900 mA, and a maximum DC resistance of 312 mOhms. It operates within a temperature range of -40°C to +125°C and has a self-resonant frequency of 17 MHz at a test frequency of 100 kHz. The package dimensions are 4.9 mm x 4.9 mm x 2 mm.
Fixed Inductors Feature Summary
- Semi-shielded construction reduces magnetic flux leakage
- Ferrite core with wirewound technology for stable performance
- AEC-Q200 qualified for automotive reliability standards
Fixed Inductors Applications
- Automotive electronics systems
- Power supply circuits
- DC-DC converter modules
Fixed Inductors Procurement Notes
Verify the specific suffix JV against official Taiyo Yuden documentation to confirm packaging and material specifications. Ensure compatibility with AEC-Q200 requirements if used in automotive designs. Cross-reference datasheet values for saturation current and DCR before finalizing BOM selections.
Fixed Inductors Selection Notes
Select this component when a compact 5020 footprint is required with 22 µH inductance. Consider the 900 mA saturation limit for peak current handling. The semi-shielded type is suitable where moderate EMI suppression is needed without full shielding costs.
Fixed Inductors Part Context
This part belongs to the NRS series of power inductors by Taiyo Yuden. The series is characterized by small size and high current capability. The NRS5020T220MMGJV specifically targets applications requiring robust performance in limited space, leveraging the company's advanced winding and core technologies.
Fixed Inductors Replacement Considerations
Official suggested alternates include LCXND5050WKT220MMG. Verify pinout, inductance value, and current ratings before substitution to ensure circuit compatibility.
