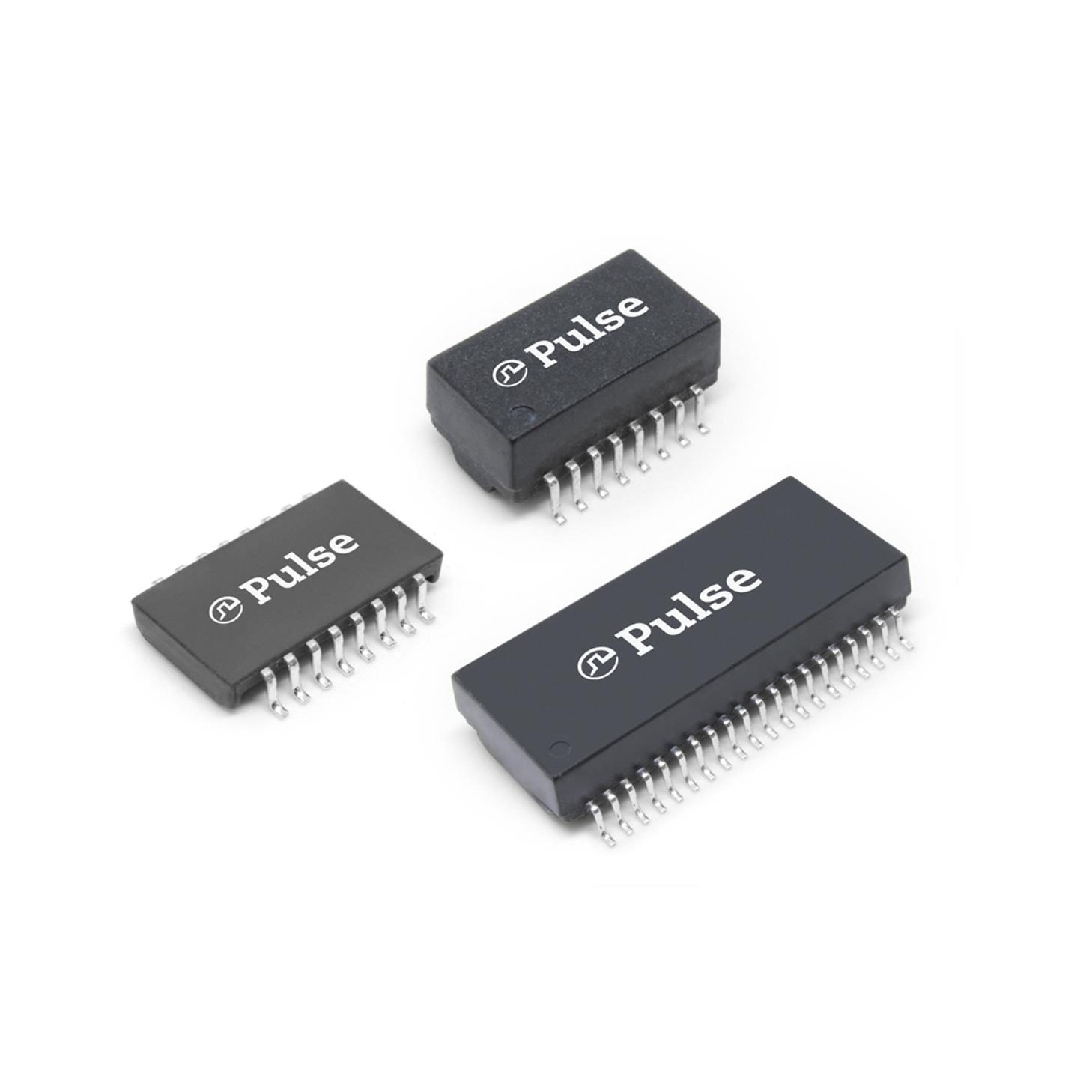

NS0015 LF
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：MDL SMD 10/100 SINGLE PORT N/A
- Series：-
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR)
- Transformer Type：LAN 10/100 Base-T
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1:1CT Transmitter, 1:1CT Receiver
- Mounting Type：Surface Mount
- Size / Dimension：0.500" L x 0.276" W (12.70mm x 7.00mm)
- Height - Seated (Max)：0.079" (2.00mm)
- Operating Temperature：0°C ~ 70°C
Download product information
Overview
The NS0015 LF is a LAN pulse transformer manufactured by Pulse Electronics, designed for 10/100 Base-T Ethernet applications. It features a surface mount package with an inductance of 350µH and a 1:1CT turns ratio for both transmitter and receiver channels. The component supports standard PCB mounting and is classified as a single-port network transformer suitable for high-reliability data communication interfaces.
Feature Summary
- Supports 10/100 Base-T Ethernet signaling standards
- Provides integrated 1:1CT transmission and reception isolation
- Utilizes surface mount technology for automated assembly
Applications
- Single-port Ethernet network interface cards
- LAN connectivity modules for embedded systems
- Industrial communication equipment requiring 10/100 Mbps data transfer
Procurement Notes
Verify the specific suffix designation against the manufacturer's current datasheet to confirm exact pinout configuration and mechanical dimensions. Ensure compatibility with the target PCB footprint and check for any recent RoHS compliance updates or lead-free status changes prior to final procurement approval.
Selection Notes
Select this component for designs requiring standardized 10/100 Base-T isolation with a 350µH primary inductance. Confirm that the surface mount form factor aligns with the board space constraints and that the 1:1CT ratio matches the transformer requirements of the specific PHY transceiver being utilized in the circuit design.
Part Context
This part belongs to the family of LAN pulse transformers produced by Pulse Electronics. These components are engineered to provide galvanic isolation and common-mode noise rejection for Ethernet physical layer devices. The product line supports various port configurations and data rates essential for modern networking hardware.
Replacement Considerations
Consult official distributor catalogs for cross-reference alternatives. Verify that any substitute maintains identical 350µH inductance, 1:1CT ratio, and 10/100 Base-T certification to ensure signal integrity.
