NS10145T100MNV

Fixed Inductors Overview

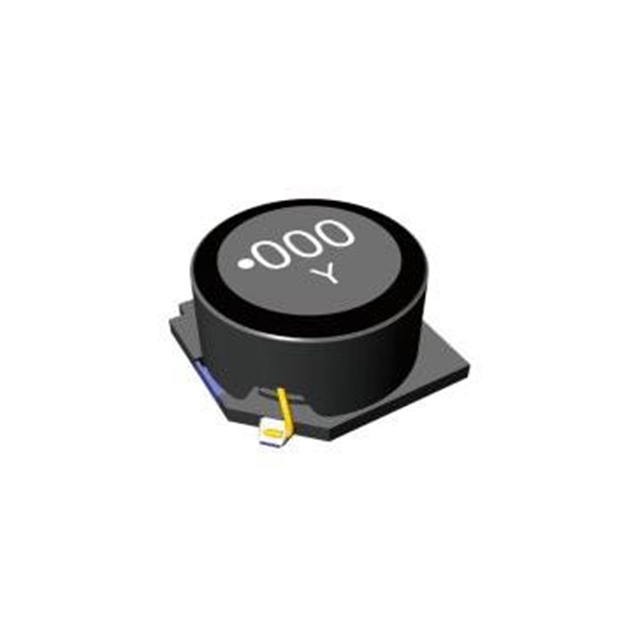

The NS10145T100MNV is a shielded surface-mount power inductor from the Taiyo Yuden NS series, designed for automotive applications. It features a ferrite core and wirewound construction with an inductance of 10 µH and a tolerance of ±20%. The component supports a maximum DC current of 3.8 A and has a maximum DC resistance of 36 mΩ. Its self-resonant frequency is 19 MHz. The device operates within a temperature range of -40°C to +125°C and meets AEC-Q200 qualification standards.

Fixed Inductors Feature Summary

• AEC-Q200 qualified for automotive reliability
• Shielded wirewound ferrite construction
• High current handling capability

Fixed Inductors Applications

• Automotive powertrain systems
• Industrial equipment power supplies
• Medical device electronics

Fixed Inductors Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific packaging options such as cut tape or reel quantities prior to ordering. Ensure storage conditions adhere to moisture sensitivity level requirements to maintain solderability and performance integrity during assembly processes.

Fixed Inductors Selection Notes

Select this component for designs requiring high-current filtering in space-constrained automotive environments. The 10.1mm x 10.1mm footprint offers a balance between inductance value and current capacity. Consider the 36 mΩ DCR for efficiency calculations and verify thermal management strategies given the 125°C maximum operating temperature rating.

Fixed Inductors Part Context

This part belongs to the NS series of SMD power inductors, which are engineered for telecommunications infrastructure, industrial equipment, and medical devices. The series emphasizes long lifetimes and low failure rates. Similar parts in the series include NS10145T220MNV and NS10145T470MNV, offering varying inductance values within the same physical package dimensions.

Fixed Inductors Replacement Considerations

Direct substitutes may include other 10µH ±20% shielded power inductors with comparable current ratings and footprint dimensions from Taiyo Yuden or alternative manufacturers. Verify that any replacement meets AEC-Q200 standards if used in automotive contexts. Cross-reference datasheets for self-resonant frequency and saturation current to ensure circuit compatibility.
