Product Detailed Parameters
- Description：LINE FILTER 15A CHASSIS MOUNT
- Series：Blackhawk™
- Mfr：TE Connectivity Laird
- Package：Bulk
- Filter Type：-
- Configuration：-
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：15 A
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

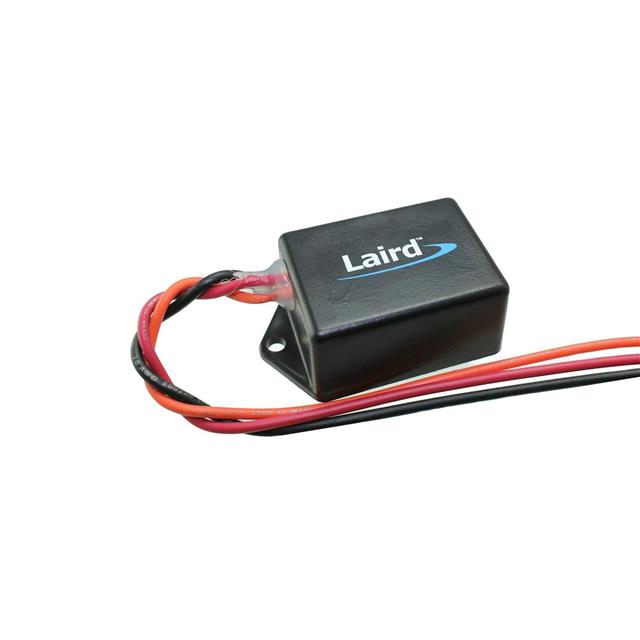

The NS1535 is a noise suppressor designed by TE Connectivity Laird for reducing power line noise in audio frequency and RF ranges. It operates with a maximum supply voltage of 35 Volts DC. The unit supports a current rating of 15 Amps at a 50% duty cycle (5 minutes on, 5 minutes off) and 12 Amps for continuous operation. It features a low-pass filter design to protect against transient ignition spikes.
Feature Summary
- Low-pass filter design reduces interference in both audio frequency and RF ranges
- Protects circuits from transient ignition spikes
- Constructed with heavy gauge wire for durability
Applications
- Two-way radio systems
- Cellular installations
- Marine electronics
- CB radio setups
- Car audio dealerships
Procurement Notes
Verify the specific manufacturer designation when sourcing, as the component is associated with both TE Connectivity and Laird Technologies. Confirm the current rating requirements match your application's duty cycle, distinguishing between the 15-amp intermittent and 12-amp continuous limits. Ensure compatibility with 1-35 VDC systems before integration.
Selection Notes
Select this component for applications requiring suppression of ignition noise and RF interference on power lines. It is suitable for environments where transient spikes are common. Consider the physical size and wire gauge requirements for installation in tight spaces typical of marine or automotive audio setups.
Part Context
This noise suppressor belongs to a category of EMC/EMI line filters used to clean power inputs for sensitive electronic equipment. Similar products often focus on specific frequency bands or current capacities, but this model is specifically engineered for general audio and RF interference reduction in vehicle and marine power systems.
Replacement Considerations
Public confirmed substitute part numbers were not identified in the provided documentation. Verify electrical specifications such as voltage drop and current handling capacity when evaluating alternative components for direct replacement.
