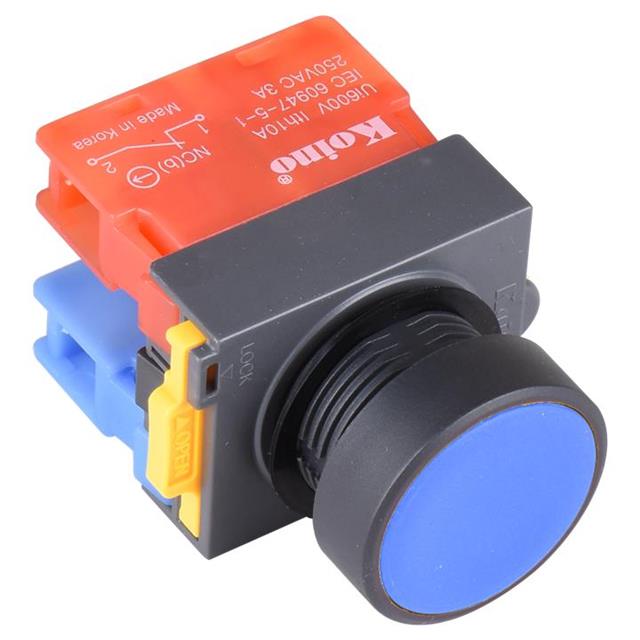

NS22-PA-B1A01B is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists KOINO. Its product description is 22mm PUSH BUTTON. Review the specifications below when checking this part for your BOM.
Pushbutton Switches specifications for NS22-PA-B1A01B
- Description：22mm PUSH BUTTON
- Series：NS22
- Mfr：KOINO
- Package：Bulk
- Mounting Type：Panel Mount, Front
- Type：Standard
- Circuit：DPST-NO/NC
- Switch Function：On-Off, Off-On
- Current Rating (Amps)：3A (AC), 270mA (DC)
- Actuator Type：Round, Button, Flush
- Actuator Marking：-
- Color - Actuator/Cap：Blue
- Illumination Type, Color：-
- Illumination Voltage (Nominal)：-
- Termination Style：Screw Terminal
- Ingress Protection：IP66 - Dust Tight, Water Resistant
- Panel Cutout Dimensions：Circular - 22.30mm Dia
- Operating Temperature：-25°C ~ 70°C
- Voltage Rating - DC：250 V
- Voltage Rating - AC：250 V
Pushbutton Switches datasheet and documents for NS22-PA-B1A01B
